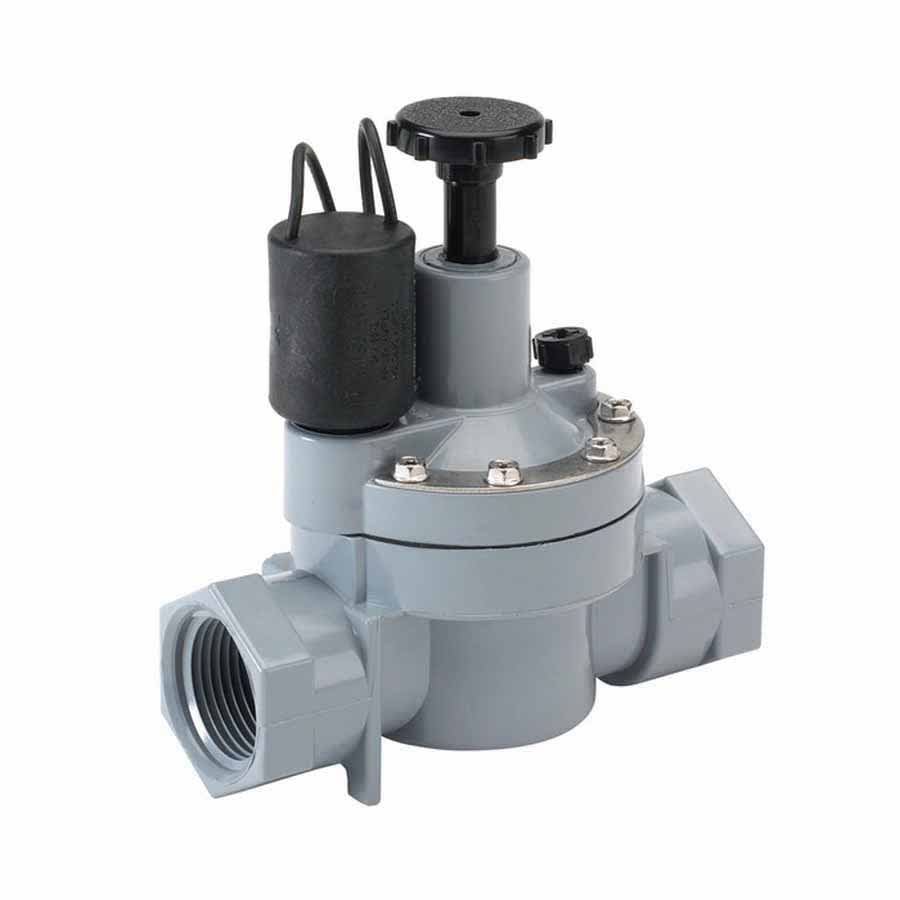

Irritrol 205 In-Line Valve with Flow Control 1" FPT

Specifications

Brand	Irritrol
Body Material	PVC
Case Quantity	20
Connection Size	1 in.
Connection Type	NPT
Electrical Rating	24 VAC, 0.4 A Inrush, 0.2 A Holding
Flow Control	Yes
Operator Type	Solenoid
Valve Type	Globe Valve
UPC	090258041177

Shop for Irritrol 205 In-Line Valve with Flow Control 1 in. FPT Inline Valve With Flow Control 1" Female Threaded Inlet/Outlet Features and Benefits The Irritrol 205 Series 1 in. plastic valve is the irrigation industry's time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature. Constructed of heavy-duty, corrosion and UV-resistant PVC, the 205 Series features an efficient design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add value to this widely popular valve. Heavy-duty, corrosion- and UV-resistant PVC construction Proven durability High-flow, low friction loss design More efficient system design and low-flow capability Rugged, nylon-reinforced Buna-N diaphragm Ensures a leak-proof seal Available in female NPT or slip configurations (no male pipe adapter required) Will handle all regional installation variances Optional flow control Allows precise adjustment and manual shutoff Added Features Buna-N valve seat seal Manual external bleed Debris-tolerant design Encapsulated injection-molded solenoid with a captive hex plunger Removable, tamper-resistant flow control handle Easily serviced without removal from the system Five-year warranty Product Details H: 5 18", W: 2 ¾", L: 5" Flow range: 0.25-30 GPM Pressure range: 10-150 psi Solenoid: 24 Vac Inrush volt-amp: 24 V ac-9.6 VA Inrush current: .4 amp Holding volt-amp: 24 V ac-4.8 VA Holding current: .2 amp
