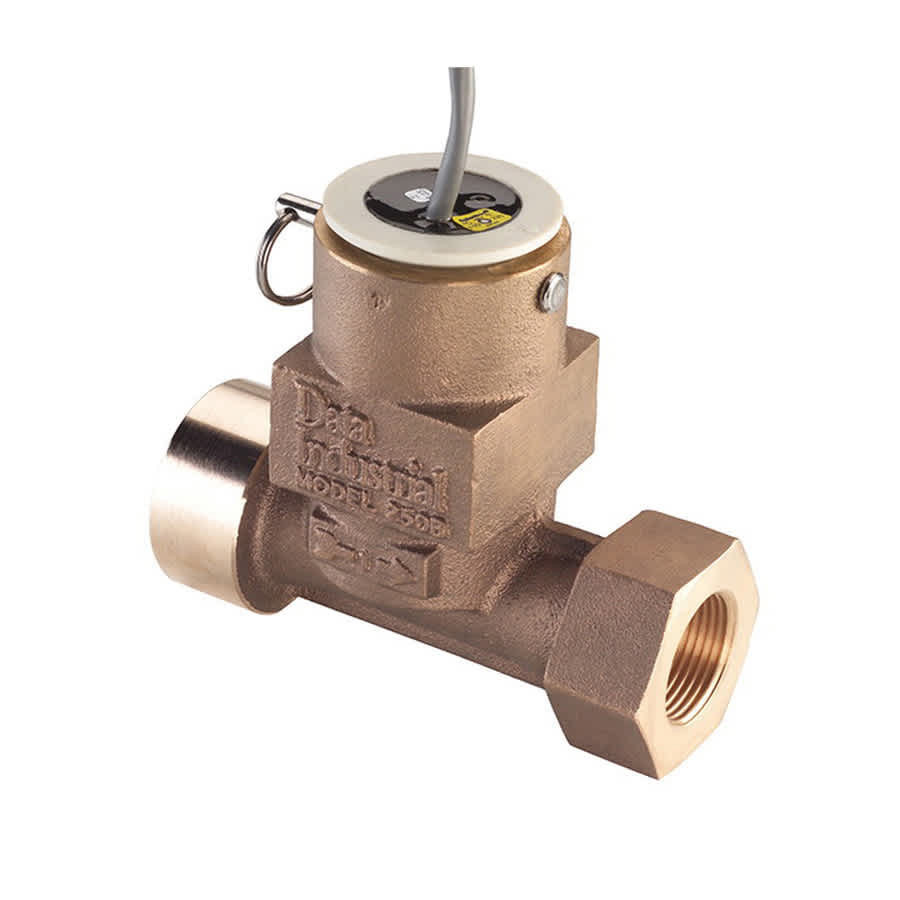

Wired 1" Cast Bronze 250 Series Irrigation Flow Sensor | DAT250B1

Key Features

• Sensor electronics easily removed from the tee
• Impeller, bearing and shaft are easily replaced in the field, without changing calibration
• Two-wire sensor, power and signal transmit on a single pair of wires, up to a distance of 2000 ft (610 m)
• Digital signal easily interfaced with transmitters, monitors or PLCs
• Six-bladed design with non-magnetic sensing mechanism
• Two-wire sensor - power and signal transmit on a single pair of wires up to the distance of 2000 ft
• Sensor easily removes from tee
• Transducer Excitation - 35 VDC Supply, 600 uA Quiescent current, 1.2 VDC at 40 mA ON state
• Electrical cable for IR sensor electronics - 48 in (122 cm) of UL style 116666 copper solid AWG 18 wire with direct burial insulation, rated to 221° F (105° C)
• Electrical Cable for Standard Sensor Electronics - 20 ft (610 cm) of 2-conductor AWG 20 with AWG 22 drain wire shielded UL type PTLC wire provided for connection to display or transmitter unit, rated to 221° F (105° C)
