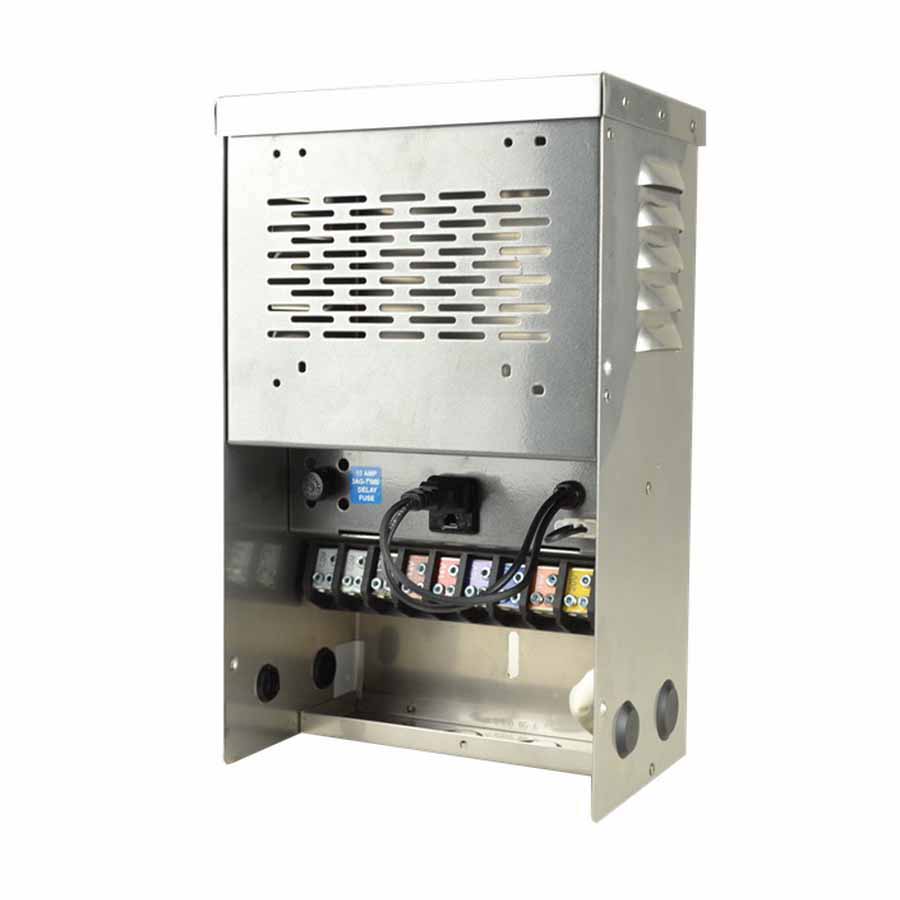

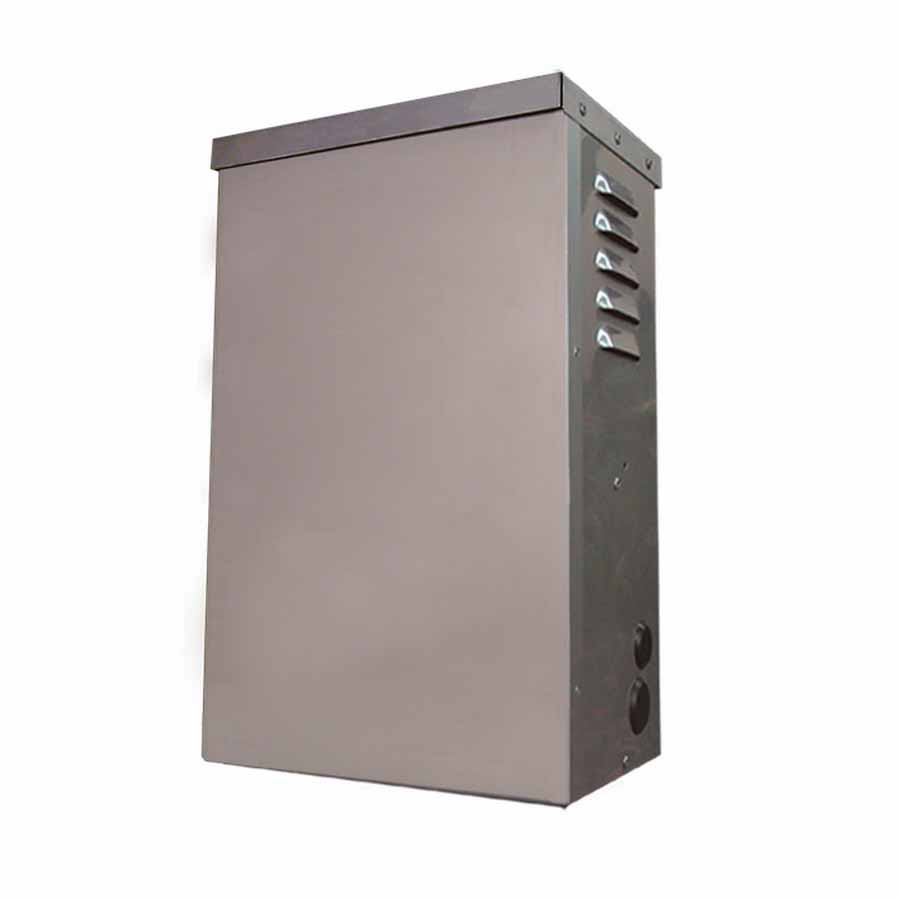

1120 W 120 V Primary 12/13/14/15/16/18/20/22 V Secondary Weathered Brass Multi-Matic Series with Secondary Lug Multi-Tap Transformer | UNI1120SSSLWB

Specifications

Brand	Unique Lighting Systems
AMP Rating	9.33 A
Electrical Connection	6 ft. 16/3 SJTW Power Cord
Enclosure Type	NEMA 3R
Finish	Weathered Brass
Housing Material	304 Stainless Steel
Power Rating	1120 W
Primary Voltage	120 V
Voltage	12/13/14/15/16/18/20/22 V
Wattage	1120W
UPC	042821001156

The Multi-Matic compensates for voltage drop by allowing the contractor to select from up to eight different voltage taps (12, 13, 14, 15, 16, 17, 18, 20 and 22 volts). This allows the contractor to customize the voltage for each individual run. It's like having eight different transformers in one. With this exclusive feature you may have wire runs up to 800' instead of the traditional short runs of 100 ft. or less and still get 12 volts to the fixture.
