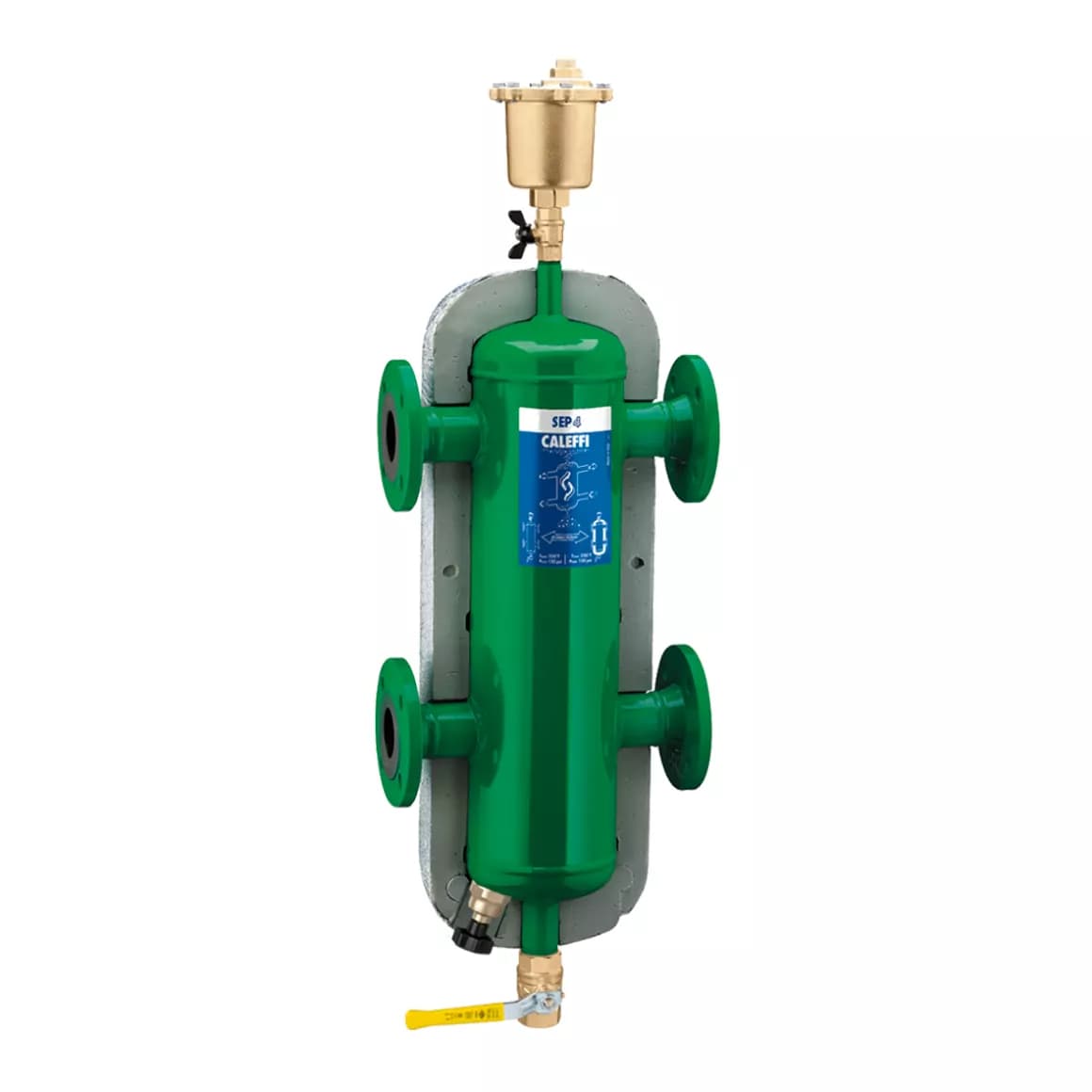

CALEFFI SEP 4 4-IN-1 FLG FLANGED ASME /CRN 4"

Specifications

Brand	Watts
Micron Rating	5 micron
UPC	8016615570168

Furnish and install on the plans and described herein, a caleffi SEP4 combination hydraulic, air, dirt and magnetic separator as manufactured by caleffi. Each separator must be designed with an epoxy resin painted steel body, a brass blowdown drain valve and automatic brass air vent with brass shutoff valve. The separator design must include ANSI B16.5 class 150 RF flanges, a 300 series stainless steel internal element and A brass drywell for an external removable neodymium rare-earth magnet with up to 100% ferrous impurities, including magnetite, separation efficiency. The separator must be ASME registered, see below, and shall be a caleffi model NA549AM or approved equal. (see product instructions for specific installation information.).
