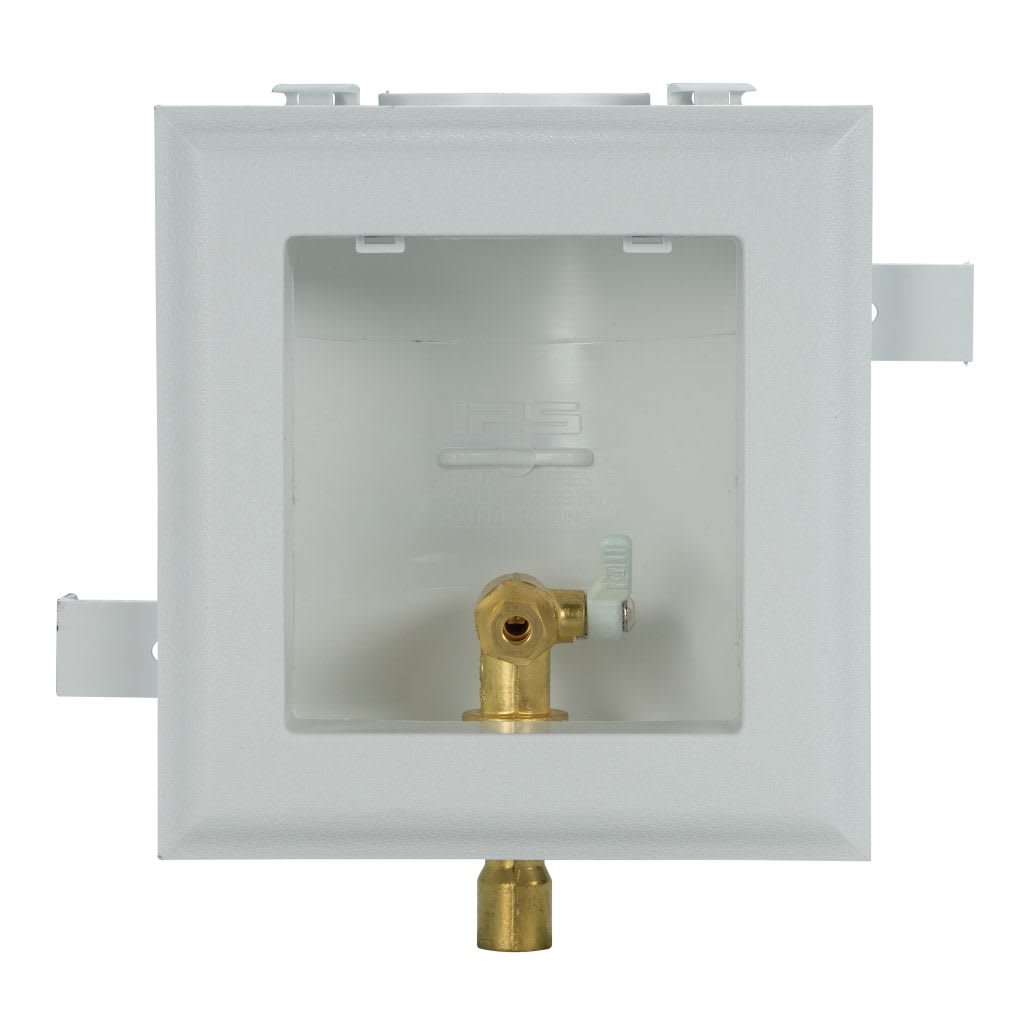

Ice Maker Outlet Box, FR, IMOB F1807 CONX | 83071_alt

Specifications

Type	Outlet Box
UPC	012181830710

Configured for simple and secure installation, the water-tite multibox fire-rated ice maker outlet box is a reliable choice for contractors and homeowners. This outlet box is ETL certified and fire rated for both one- and two-hour-rated walls. It has an intumescent pad attached to the back of the box that swells in the event of fire, acting as an insulator to prevent excessive heat from passing through the structure. This outlet box has a pre-installed lead-free quarter-turn brass valve that features an anti-rotational design, making it easy to access and use. This icemaker outlet box has integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. The included faceplate measures 6-1/2 inches wide by 6-7/8 inches high, can accommodate up to two sheets of 5/8-inch drywall, and is interchangeable with all multibox outlet boxes. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
