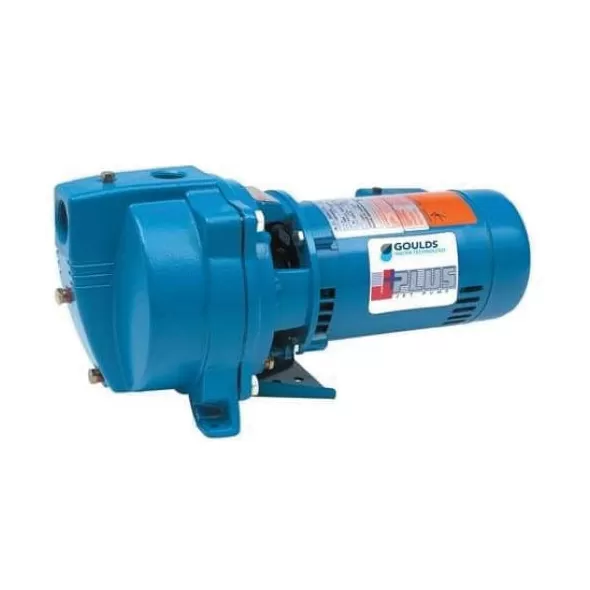

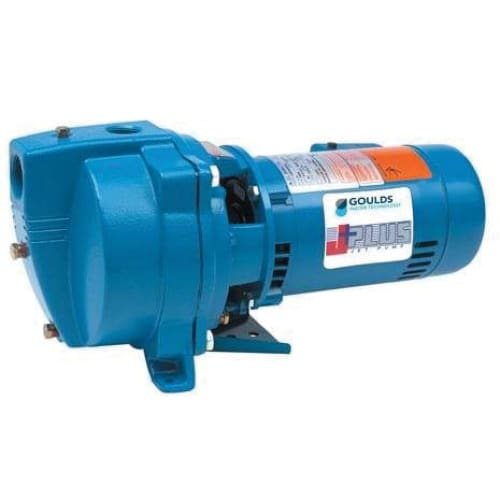

0.5 hp 115/230 V 17.5 gpm Shallow Well JS+ Series Jet Pump | GLDJ5S

Out of stock
0.00
(0 reviews) Write a review
J5S
Request Quote

Minimum quantity for "0.5 hp 115/230 V 17.5 gpm Shallow Well JS+ Series Jet Pump | GLDJ5S" is 1.

Chat Now

Key Features

  • Design has an integral shallow well adapter built-into the casing, which eliminates the need for a separate shallow well adapter
  • Back pullout design allows disassembly of pump for service without disturbing piping
  • Two compartment motor for easy access to motor wiring and replaceable components
  • Nozzle clean out plug in pump case
  • Corrosion-resistant, engineered plastic tubing and fittings are easily removed for cleaning, premium O-ring design fittings need only be hand tight to seal
  • Glass filled Noryl® corrosion and abrasion-resistant
  • Bolt down diffuser provides positive alignment with impeller
  • Diffuser also has stainless wear ring for extended performance in abrasive conditions
  • FDA compliant, injection molded, food-grade, glass filled Lexan® for durability and abrasion-resistance
  • Tubing and fittings - FDA compliant engineered plastic is corrosion and UV-resistant
  • Powered for continuous operation - pump ratings are within the motor manufacturer's recommended working limits
  • Corrosion-resistant - electro-coated paint process is applied inside and out, then baked on
  • Protected mechanical seal - Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry
  • Excellent air handling ability - after initial priming the pump has the ability to re-prime itself even when air gets into the system

Tell us what you need

Description

Specifications

BrandGoulds
AMP Rating10.8/5.4 A
Discharge Size1 in. NPT
Frequency Rating60 Hz
Horsepower1/2 hp
IncludesPump with Integral Shallow Well Jet (Nozzle and Venturi), Motor, Pressure Switch and Tubing
MaterialCast Iron
Speed3500 rpm
Voltage115/230 V
UPC697666006417
