Description
Specifications
| Brand | Pentair |
| Horsepower | 1 hp |
| Material | Cast Iron |
| Voltage | 115/230 V |
| UPC | 022315160415 |

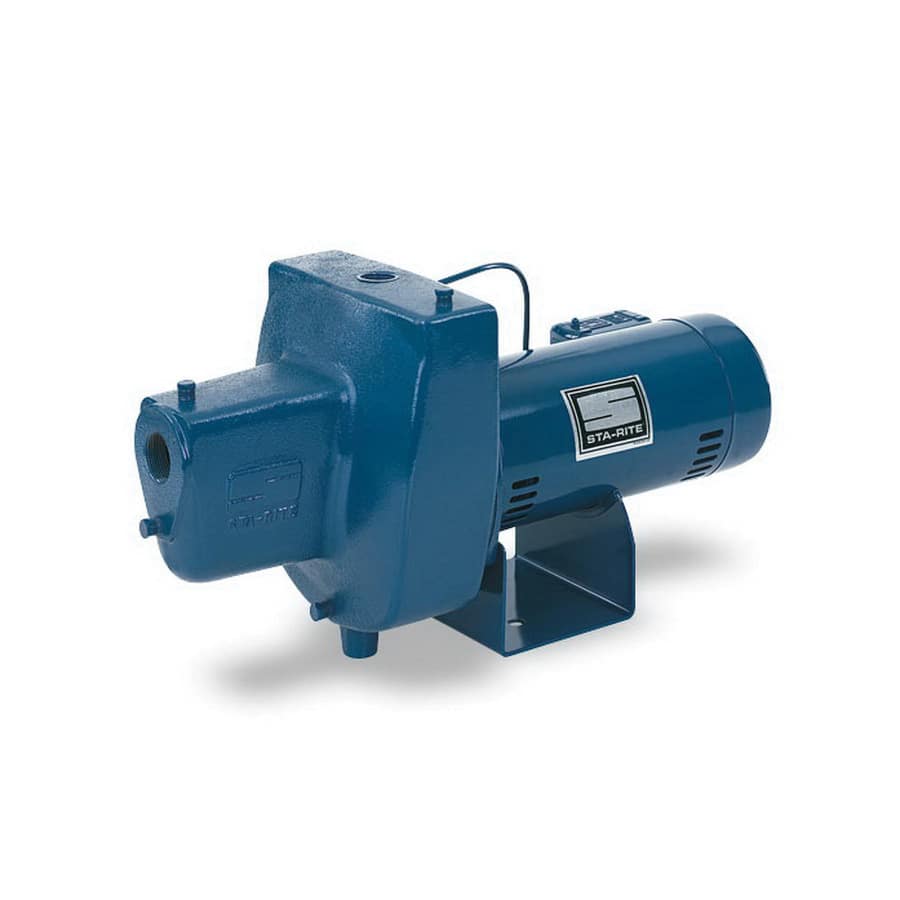

Sta Rite / Pentair Flow Tech Jet Pump, 115/230 V Self Priming Shallow Well HN Series Quality Construction - Close-grained cast iron body.Drain port provided for easy winterizing Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. Motor Windings - Superior insulation materials protect against excessive moisture and contaminants and assure prolonged motor life. Heavy-duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation. Features and Benefits Quality construction - close-grained cast iron body, drain port provided for easy winterizing Product Details Body Construction: Cast Iron Maximum Capacity: 28.5GPM (HNE model) Flow at 10' Lift and 40 PSI: 18.7 GPM (HND model) Max Lift: 25' Max Shut-Off Pressure: 70 PSI (model HNC) Maximum Inlet Pressure: 50 psi (inlet pressure + discharge not to exceed 100 psi) Pressure Switch Setting: 30-50 PSI Suction Size: 1-1/4" NPT Discharge Size: 1" NPT Amp Draw (full load): 19.2 amps (1 HP running on 115v) Voltage: 230v / 115v AC, 60 Hz, single-phase (factory pre-set at 230v) Recommended Breaker: Model and Voltage Dependent Maximum Liquid Temperature: 140°F / 60°C
