Description
Specifications
Brand | Munro |
AMP Rating | 40 A |
Enclosure Color | Blue Powder Coated |
Enclosure Material | Steel |
Enclosure Type | NEMA 3R |
Frequency Rating | 60 Hz |
Includes | Preset Pressure Sensor |
Voltage | 110 to 240 VAC Line, 24 VAC Signal |
Warranty | Limited |
UPC | 810009073444 |

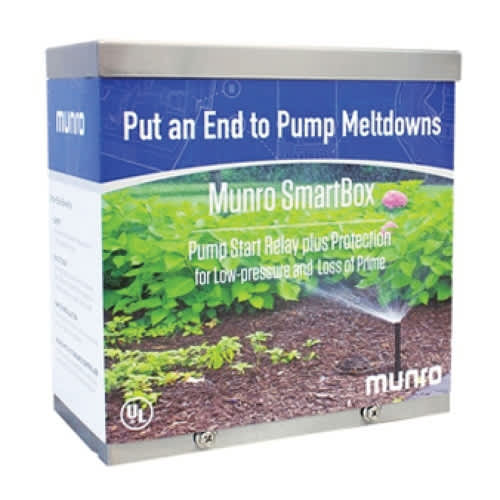

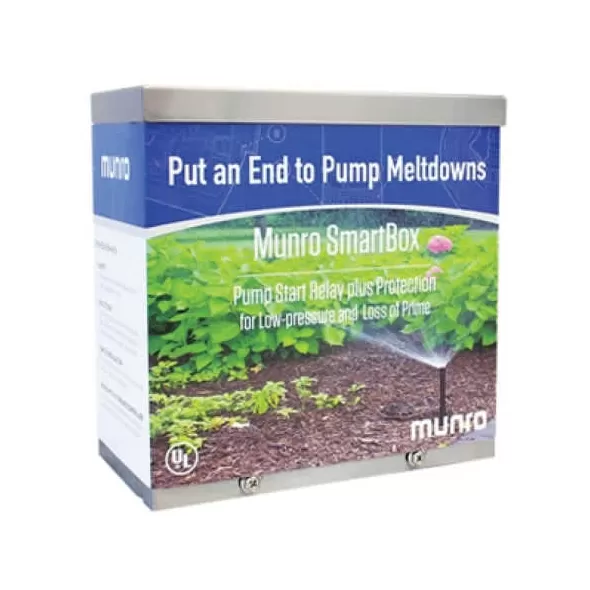

A great option for pump start and pump protection in one, the Munro SmartBox includes a preset pressure sensor that alerts the control system of potential pump damage due to loss of prime or run dry. Additionally, the Munro SmartBox provides personal protection. All external devices are powered at reduced 24 V. Low risk of line voltage harming people or pets. No need to wonder which relay to use, the Munro SmartBox has a 40 A relay to work equally well with single phase 3/4 to 5 hp. Available in 24 V, 110 V, 220 V coils.
