120/208/240 V 7 to 15 A Full Load 1 Phase 112 Model Control Panel | SJE112PANEL

Out of stock
0.00
(0 reviews) Write a review
1121W114H8AC17A
Request Quote

Minimum quantity for "120/208/240 V 7 to 15 A Full Load 1 Phase 112 Model Control Panel | SJE112PANEL" is 1.

Chat Now

Key Features

  • Red alarm beacon provides 360° visual check of alarm condition (NEMA 1 style uses a door mounted indicator in lieu of a beacon)
  • Alarm horn provides audio warning of alarm condition (NEMA 1 style uses an internally mounted buzzer in lieu of a horn)
  • External alarm test/normal/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition, alarm automatically resets once alarm condition has been cleared
  • Horn silence relay
  • Magnetic motor contactor controls pump by switching electrical lines
  • Hand/Off/automatic (HOA) switch for manual pump control
  • Green pump run indicator light
  • Float switch terminal block
  • Alarm and control fuses/indicators
  • Ground lug

Tell us what you need

Description

Specifications

BrandSJ Electro Systems
AMP Rating7 to 15 A Full Load
Voltage120/208/240 V

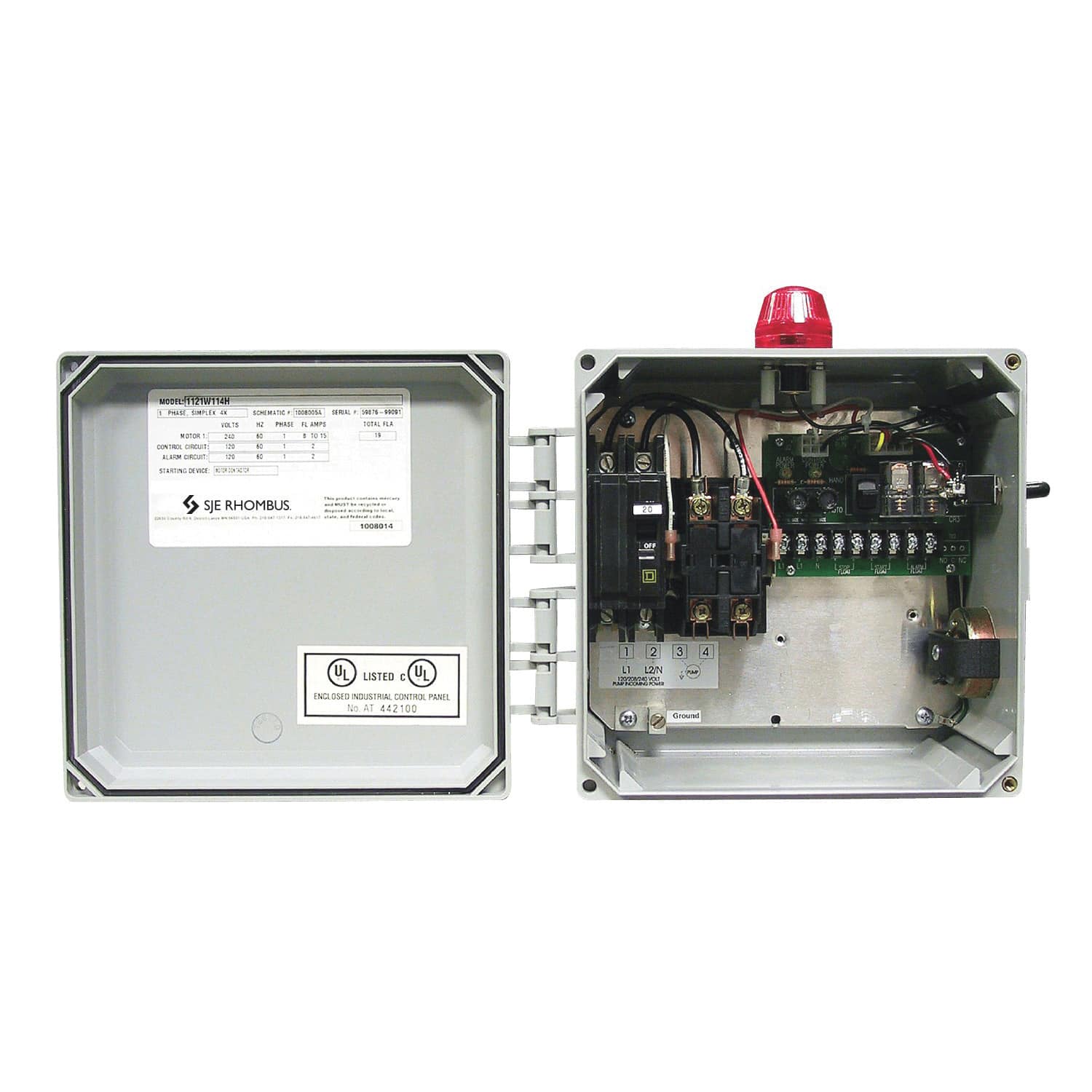

The model 112 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs. The model 112 control panel provides a reliable means of controlling one 120/208/240 V single phase pump in water and wastewater applications. Two control switches activate a magnetic motor contactor to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system.
