120/230 VAC 5A NC 3.38" Dia x 4.55" PVC 15SWENC Control Switch | SJE15SWENC

Out of stock
0.00
(0 reviews) Write a review
1002155
Request Quote

Minimum quantity for "120/230 VAC 5A NC 3.38" Dia x 4.55" PVC 15SWENC Control Switch | SJE15SWENC" is 1.

Chat Now

Key Features

  • Suitable for use with intrinsically safe circuits
  • Not sensitive to rotation
  • Control differential of 0.5 in. (1 cm) above or below horizontal
  • UL Listed for use in non-potable water and sewage
  • Externally weighted for applications where the switch can be suspended from above
  • Maximum water depth: 30 ft / 13 psi
  • Mercury tilt switch: SPST
  • Control differential of 1/2 in. above and below horizontal
  • Water-resistant, flexible 18-gauge cable
  • High-impact, corrosion-resistant PVC float

Tell us what you need

Description

Specifications

BrandSJ Electro Systems
AMP Rating5 A
Cord Length15'
Operation ModeNC
Potable WaterNon-Potable Water
Voltage120/230 VAC
UPC01975302155

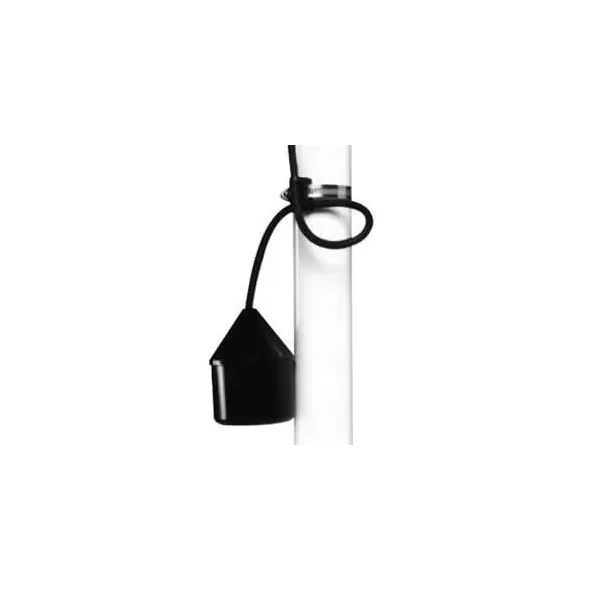

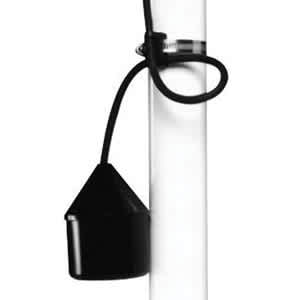

Mercury-activated, narrow-angle float switch designed to activate pump control panels and alarms. This narrow-angle sensing device is used to accurately monitor liquid levels in sewage and non-potable water applications. The Sensor Float® control switch is not sensitive to rotation and is suitable for use with intrinsically safe circuits. Contact SJE Rhombus regarding specific intrinsically safe applications. Normally closed model (low level), the control switch turns on (closes) when the switch drops slightly below horizontal signaling a low level and turns off (opens) when the switch tips slightly above horizontal.
