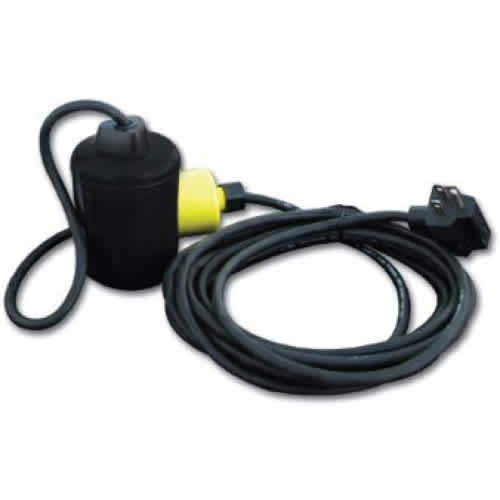

120/240 VAC 13 A 1/2 hp at 125 VAC 3/4 hp at 250 VAC 16' Cord Quick Ends with Weight Float Control Switch

Specifications

Brand	Munro
AMP Rating	13 A
Connection Type	Quick Threaded
Contact Configuration	Normally Closed
Cord Length	16'
Height	3.95 in.
Voltage	120/240 VAC
For Use With	1/2 hp and Smaller Pump Motor

The Munro FloatControl® is a direct acting, in line control system for automatically controlling 1/2 hp and smaller pump motors or used in conjunction with a pump start relay to accommodate larger hp motors. The FloatControl® can easily be adjusted to various pump up/down cycles by shortening or lengthening the cord length at the pivot point. The FloatControl® is also omni directional the pumping differential is maintained in any horizontal position.
