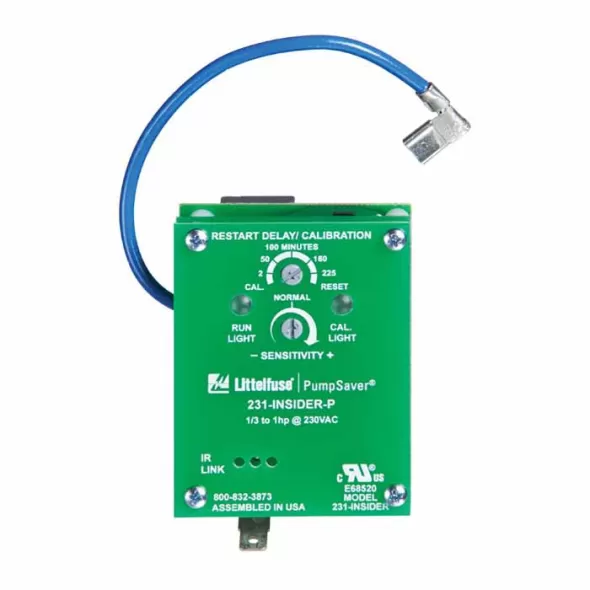

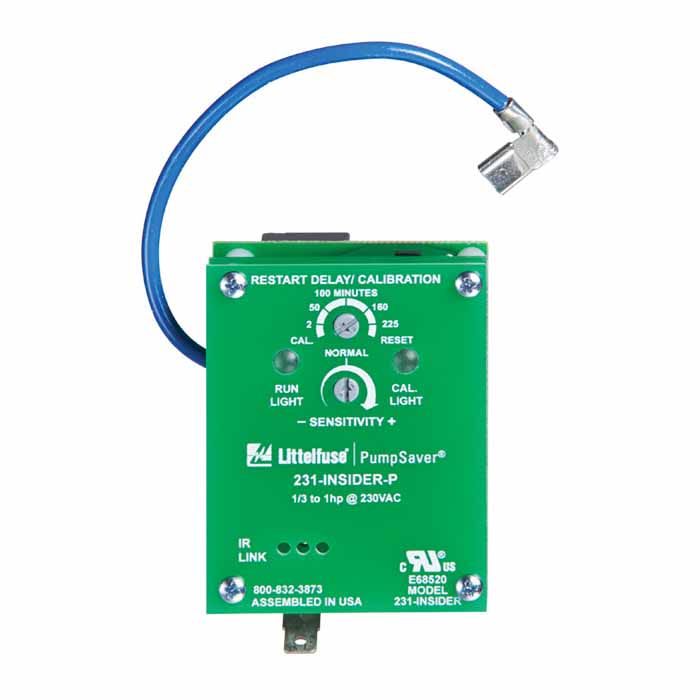

17 Amp 230 VAC 1/3 - 1 hp Pump Monitor | SYM231PINSIDER

Out of stock
0.00
(0 reviews) Write a review
231-INSIDER-P
Request Quote

Minimum quantity for "17 Amp 230 VAC 1/3 - 1 hp Pump Monitor | SYM231PINSIDER" is 1.

Chat Now

Key Features

  • Proprietary microcontroller based circuitry - constant monitoring of voltage and current protects pumps from dry-well, dead-head, jammed impeller, rapid cycling, and voltage faults
  • Onboard sensitivity adjustment - allows user to adjust the current sensitivity for the dry-well or dead-head trip point from 70 to 90% of the full load
  • Adjustable restart delay: allows user to select well recovery time delay after a dry-well condition occurs, or to select manual reset
  • Built in IR communications link: used with the Informer, allows user to see stored faults, run time, and also troubleshoot the pump while it's running
  • LED indication - provides status and diagnostics for troubleshooting
  • Inside a Franklin™ Pente® or CentriPro™ control box mounting methods

Tell us what you need

Description

Specifications

BrandLittelfuse
Hertz50/60 Hz
MountingChassis, Control Box
UPC07945899030

The Littelfuse 231-Insider-P fits inside 1/3, 1/2, 3/4 and 1 hp, 230V control boxes and are designed to protect single-phase pumps from dry-well, dead-head, jammed impeller, rapid-cycle, overvoltage and undervoltage conditions. A calibration adjustment allows the Insider to be calibrated to your specific pumping applications, thereby reducing the possibility of false or nuisance tripping. A unique microcontroller-based voltage and current-sensing circuit constantly monitors the incoming power for fluctuations, overcurrent and undercurrent. When an abnormality, such as loss of suction is detected, the product deactivates its output relay and directly disconnects the pump motor. The relay then begins its user-selectable restart delay (dry-well recovery) timer. When the timer counts to zero or power is removed and reapplied, the relay reactivates its output relay and turns the pump back on. By leaving the restart delay knob in the reset position, the relay will operate in manual reset mode.
