Start Relay, 40 A 120/230 VAC Primary 24 VAC Secondary 3 hp at 120 VAC 7.5 hp at 230 VAC PSR 2-Pole Single-Throw Pump

Specifications

Brand	Hunter
AMP Rating	40 A
Enclosure Type	NEMA 3R
Power Rating	3 hp at 120 VAC, 7.5 hp at 230 VAC
Primary Voltage	120/230 VAC
Voltage	24 VAC
UPC	611698100042

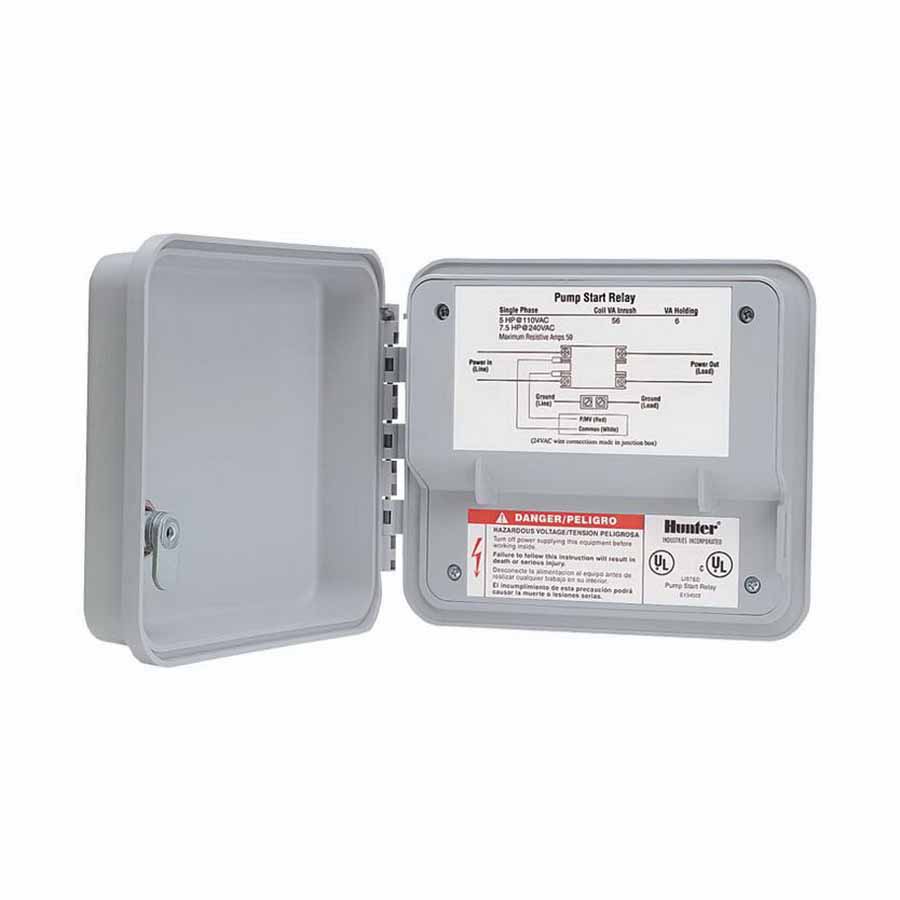

When a system requires the use of a booster pump or pulls water directly from a creek or pond, it's imperative to include a relay that can be counted upon to activate the pump each and every time. Hunter's Pump Start Relays have been created to provide that reliability-as well as a lockable NEMA rated enclosure-at an economical price. Available in a choice of three models to accommodate a variety of power sources and landscape needs, the product is fully compatible with all standard 24VAC controllers. It's also designed with user-friendliness in mind, with flying leads that allow for effortless 24V connections plus a wide array of "knockouts" on the cabinet to make wiring easy and accommodate all mounting specifications.
