Description
Aegis Series Gen 2 Product Description

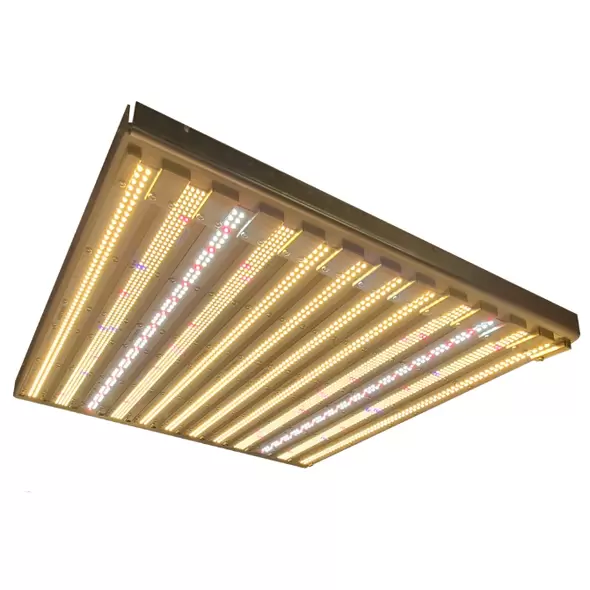

The Aegis Series Gen 2 LED Grow Light, this design goes for passive cooling, high output full-spectrum light, with multiple spectra and wattage options. Each fixture is designed for an extremely long life with a great warranty. Current offerings are 320 watts, 620 watts, and 1240 watts, perfect for direct replacement of 600w, 1000w, and higher HPS and Metal halide lighting systems. Each spectrum is perfectly tailored to Vegging, Flowering, and Full Cycle growing. The Gen 2 Aegis is also compatible with our Quasar LED Boards for extra output and UV to IR capabilities. Custom spectrums are available upon request!
Compatible with our GIL100 Touch Screen!
Aegis Remote Mount Driver Capability
Remove the extra heat source from your grow space! Each Aegis Gen 2 comes with a remote mount driver bracket, we also sell an extension cord to give you extra length to place your driver where you need it.
Spectrum Options
Grow-it-LED offers three spectrum options for the Aegis series, each spectrum is detailed below.
Vegetative Spectrum
Our blue heavy spectrum is designed to keep internodal spacing tight while covering a large area. We also incorporate a small amount of 660nm light to help speed up the photosynthesis process for a quicker vegging period. PPFD measurements are taken at about 18 inches from the fixture.
Diode Counts:
(1024) 301B 5000K
(384) 301H 5400K
(64) 351H 660nm
Total: 1472 Diodes
Flower Spectrum
The flower spectrum offers a high red to blue ratio of 2.63:1 R/B and a color temperature of 3500K. This spectrum is ideal for flowering but could also be used for full-cycle growing. PPFD measurements are taken at about 18 inches from the fixture.
(1024) 301B 3000K
(384) 301H 5400K
(64) 351H 660nm
Total: 1472 Diodes
PPFD Measurements
Official PPFD measurements coming soon!
Electrical Specifications
| Power Draw | 620w |
| HPS/MH Replacement Wattage | 1000w HPS |
| Spectrum | 301B, 301H, 351H diodes in various combinations to provide specific spectrums |
| PAR efficacy | PAR eff. is based on each spectrum, varying from 2.5 to 2.8+ Umol/J |
| PPF | Spectrum dependant (2.6 to 2.8) |
| Coverage Area | 5′ x 5′ flower and 6′ x 6′ veg |
| Lifetime | 75,000+ Hours (11.4 years of continuous use) |
| Driver | Inventronics EUD series driver |
| Cables | 6-foot industrial-grade SEEO Cord (Standard) |
| Plug | 5-15P Standard Other NEMA Plugs are available |
| Dimming | 0-10v Dimming capable, compatible with all RJ12 Dimming systems (GIL100 Touch Screenand LMA-14 adapter required for Trolmaster systems) |
| Hanger | Built-in hanging holes |
| Warranty | 5 year |
| Grams per watt | 1.81 g/w (Expected) |
| Yield | 1122.2 Grams |
| Voltage | AC 120V~277V |
| Amp draw | 110V – 5.17A / 240V – 3.08A |
| BTU | 2114 |
| Dimensions | W = 24″ L = 24″ H = 3″ |
Additional information
| Weight | 30 lbs |
|---|---|
| Dimensions | 28 × 28 × 6 in |
| Spectrum | Vegging, Flowering, UV to IR Full Spectrum, L2 Horticulture Gen 2 |
| Plug | NEMA 5-15P (120v) Standard, NEMA 6-15P (240v), NEMA L7-20P (277v) |
| Dimming | Dimming Knob (Standard), RJ12 Trolmaster Connector |
