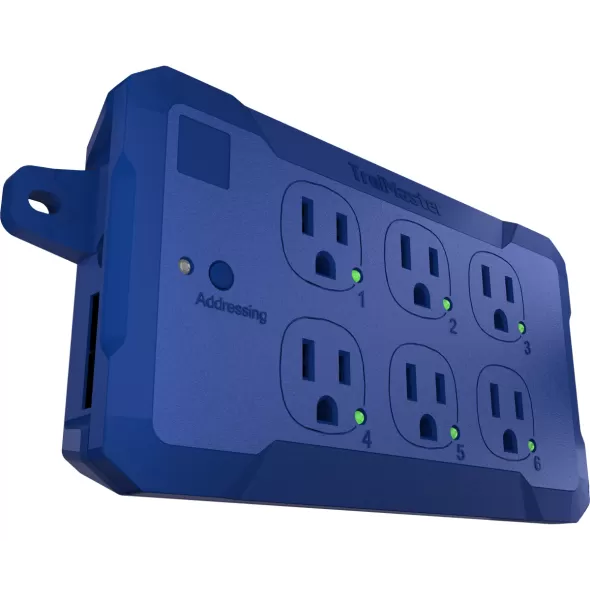

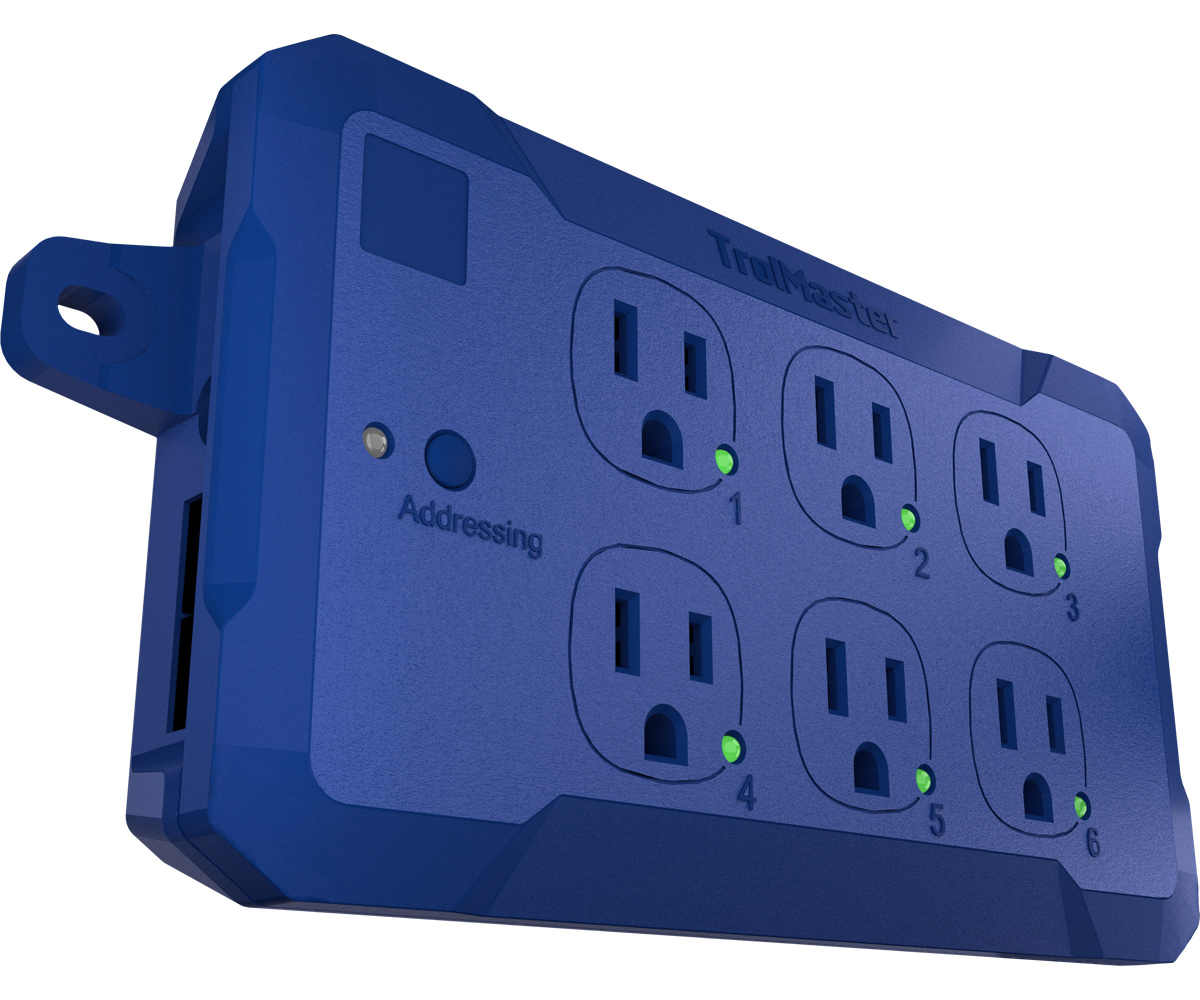

TrolMaster (OA6-110) 110V Control Board for Aqua-X System
TrolMaster's OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off. Up to (5) of the OA6-110 modules can be connected to a single Aqua-X.
Features & Benefits:
Package Content:
Specification:
TrolMaster's OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off. Up to (5) of the OA6-110 modules can be connected to a single Aqua-X.
Features & Benefits:
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 110V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Easy Connectivity
Package Content:
- 1 x 110V Control Board
- 1 x 16ft RJ12 Cable
Specification:
- Input Voltage :120 VAC
- Max Input Current :9A
- Max Output Voltage/Current :120VAC/1.5A per Output
- Working Temperature :32°-122°F
- Working Humidity :≤90%
- Packaging Dimensions :275mm(L) x 164mm(W) x 62mm(H)
