Description

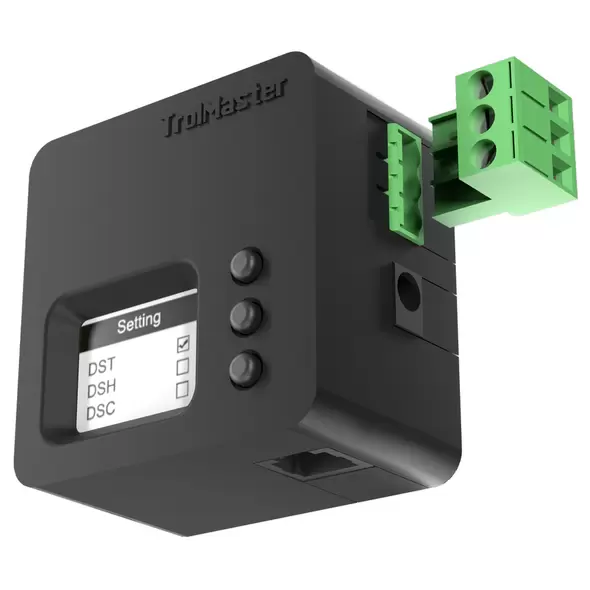

TrolMaster (DSD-1) Dry Contact Station for Hydro-X system
The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to the user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. It can be configured to work as the other Trolmaster power modules work, such as DST, DSH, DSC, DSH.
Comes with a cable set.
Features & Benefits:
Package Content:
Specification:
The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to the user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. It can be configured to work as the other Trolmaster power modules work, such as DST, DSH, DSC, DSH.
Comes with a cable set.
Features & Benefits:
- LCD Indicator
- Attaching Plug
- RJ12 Cable Socket
- Address Assignment
- Plug & Play
Package Content:
- 1 x Dry Contact Station DSD-1
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Input Voltage : 100~240 VAC, 50/60Hz
- Output Current : 10A
- Output Voltage : 100~240 VAC, 50/60Hz
- Working Temperature : 32-122°F
- Working Humidity : ≤90%
- Packaging Dimensions : 85mm(L) x 80mm(W) x 90mm(H)
