200L LPE Extraction System - PURE5™

Description

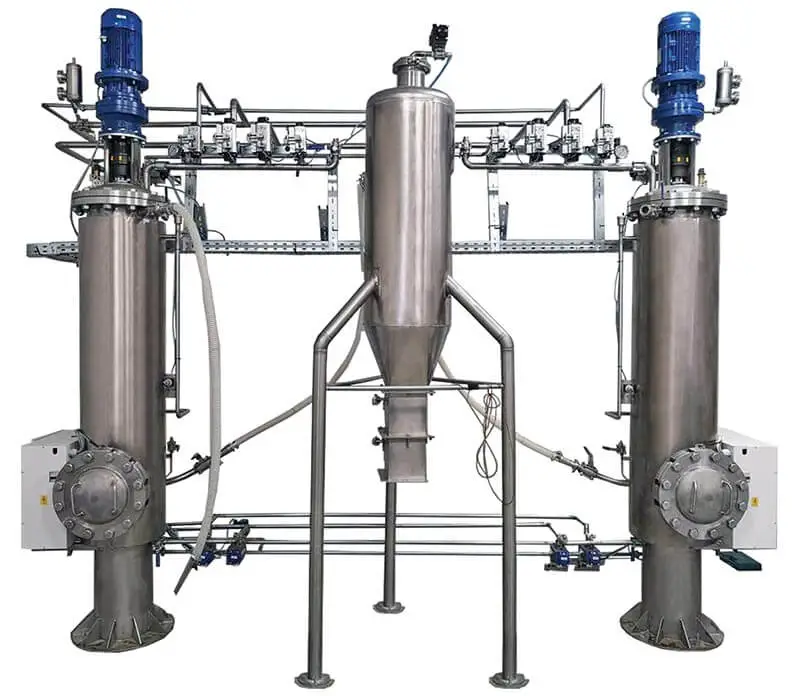

The groundbreaking 200L LPE Extraction System, a cutting-edge solution for large-scale botanical extraction, is one of the most popular large scale extraction systems PURE5 offers. This state-of-the-art cannabis extractor sets a new standard for efficiency and precision, offering impressive capacity and advanced technology. The Extraction Vessel, consisting of two 100L vessels, can handle a significant amount of dried and ground material. Crafted from premium 304/316 stainless steel with a polished food-grade interior, it ensures optimal purity and durability. With a maximum operating pressure and temperature, it creates the perfect environment for efficient extraction.

The Separator/Collection Vessel, a jacketed 15-liter vessel, facilitates seamless separation and collection. Its continuous diameter flow path and high-quality stainless steel construction guarantee exceptional extraction performance. The Heat Exchanger, equipped with an all-stainless-steel refrigeration unit, allows precise temperature control using R134a refrigerant. Additionally, the Chiller/Receiver provides a wide temperature range to optimize extraction conditions.

Take full control of your extraction process with the fully automatic programmable Logic Controller (PLC) touch screen interface. This user-friendly interface allows you to customize settings for pressure, temperature, and time, ensuring precise extraction customization. Safety is a top priority, with pressure transducers continuously monitoring system pressure to prevent over-pressurization.

Unlock the potential of large-scale botanical extraction with the 200L LPE Extraction System. Elevate your productivity and quality by embracing this cutting-edge cannabis extractor. Contact us today to discover a new era of efficient and precise extraction processes that will revolutionize your operations.

Extraction Vessel

• Volume: 2x100L vessel holds up to 20-40 pounds dry material
• Pressure: Maximum system operating pressure 14 bar
• Temperature: max 85C(185F)
• Materials: 304 stainless steel except closure bolts which are zinc coated grade 8 steel.
• Vessel: interior is polished to food grade level
• Closures: ASME flange, both ends
• Sealing: PTFE flat seals
• Temperature measurement: lPt100 sensors
• Water Jacket volume: 100 Liters (26.5 gallons)
• Safety: spring loaded safety relief valve
• Raw material feed: vacuum mode
• Residue removal: vacuum mode, clamp closure
• Raw material agitation: low speed stirrer

Separator/Collection Vessel

• Separator: Jacketed separator/collection vessel
• Volume: 15 Liter
• Pressure: Maximum system operating pressure 14 bar
• Temperature: max 71C (160F)
• Materials: 304 stainless steel
• Closures: rotary spray ball
• Sealing mechanism: sanitary gasket
• Safety: spring loaded safety relief valve
• Flow path: from extractor to separator is continuous diameter with no constrictions

Heat Exchanger

• Construction: Refrigeration unit
• Materials: All 304 stainless steel
• Cooling/Heating: R404a refrigerant

Chiller/Receiver

• Refrigeration: heat pumping
• Temperature range: -10C to 50C (14F to 158F)
• Maximum refrigerant content: 350 kg

Physical Dimensions

• Height: 2500 mm
• Length: 3020 mm
• Width: 200 mm
• Weight: 1000 kg

Control System

• Functions: Fully automatic programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature, and time.
• Safety: Pressure transducers monitor system pressure and shut down system to prevent accidental over-pressurization/safety valves.
