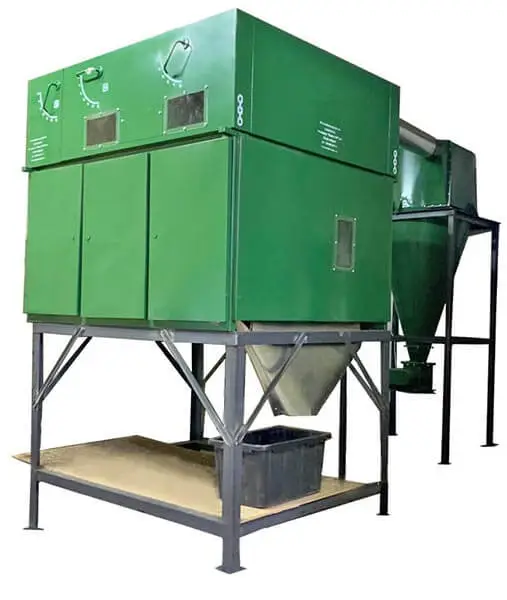

Stick and Seed Separation - PURE5™

Specifications

Feeding Conveyor

• Model: 2.5m shaft
• Motor power: 3 kW
• Material: food grade stainless steel
• Application: conveying material to the sifter bay

Sifter

• Width: 2000 mm
• Length: 4000 mm
• Motor power power: 2.55 kW
• Frame material: food grade stainless steel
• Speed controller: 1 pieces

Separator

• Model: 12Mx4L
• Fractions: 3 fractions
• Insulation layer: rock wool 25 mm
• Sift material: 304SS
• Insulation layer: Rock wool 25 mm, sealing rubber strip.
• Mesh: SS 304 stainless
• Chain: P=25.4, Supporting roller, supporting tube: φ21.5.
• Transmission shaft: φ45
• Bearing: 6308
• Frame: 8#U steel, 80*40 Galvanized square
• Sealing device: Rock wool insulation.
• Discharge seal plate: Aluminium silicate board.
• Drying temperature: 0-90 degree Centigrade, Can be adjusted

Cydon

• Size: 3424*2182*1838
• Blower system: 2.2 kW
• Temperature: 0-90°C

Control cabinet

• Model: Frequency converter
  • Control the motor power of dryer
  • Control the speed of dryer
  • Control the temperature of dryer
• Total power: 27.75 kW

Electric consumption

• Total Power: 22.2 kW
