MegaDrive® Linear 400 - California LightWorks

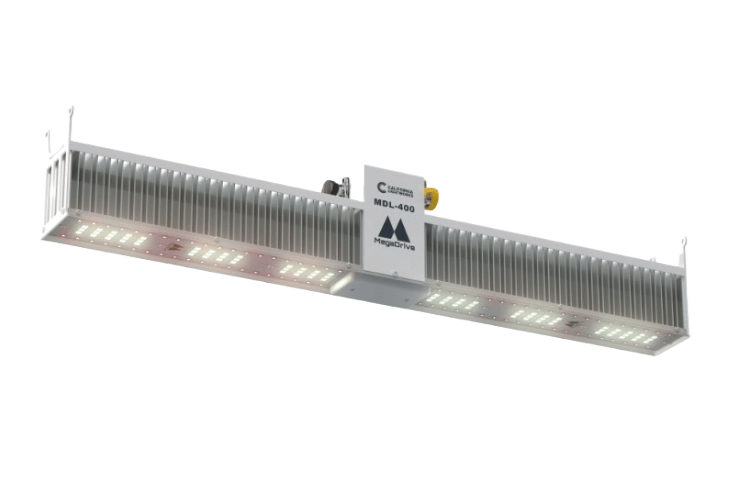

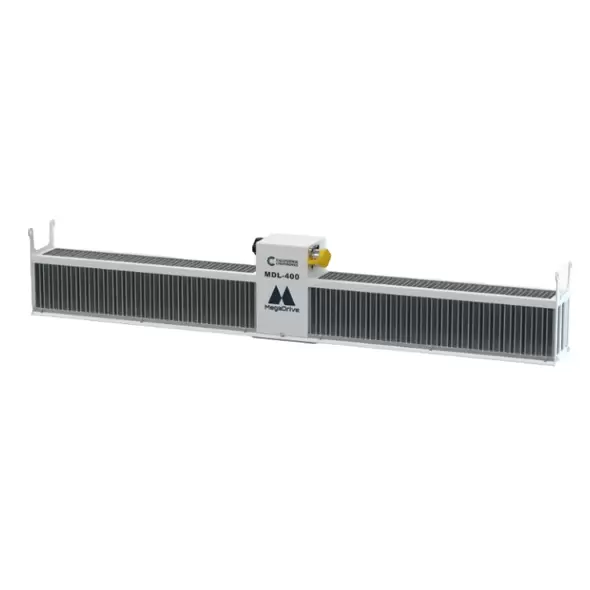

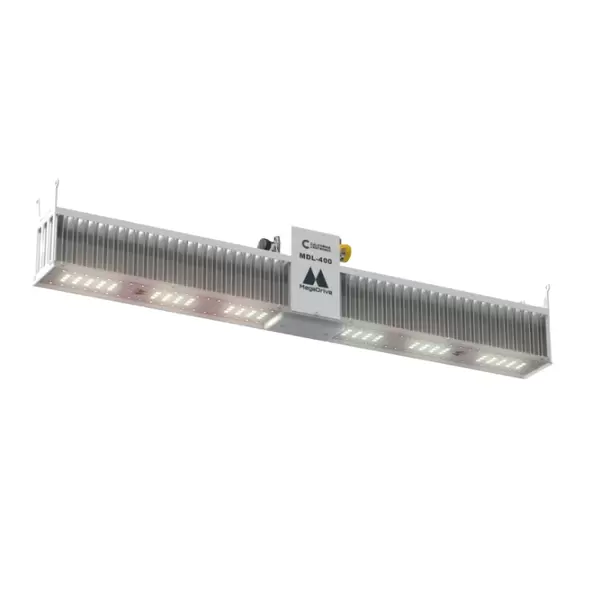

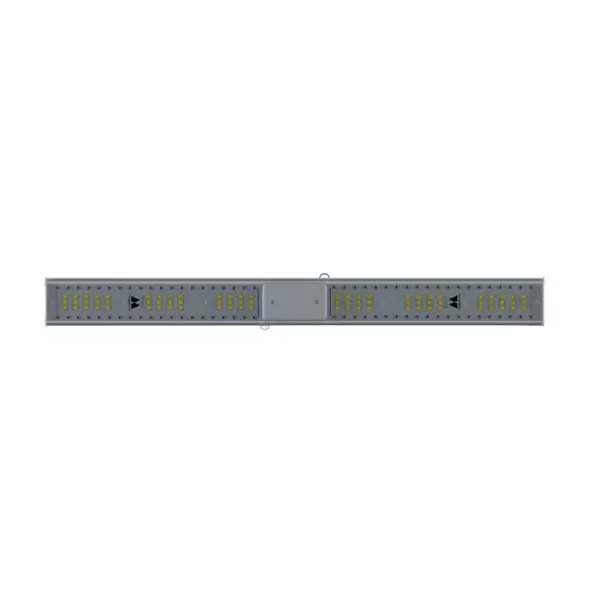

The New MegaDrive® Linear 400 is specifically designed for supplemental lighting in greenhouses. It features a very small shadow effect yet covers a large area. The Linear 400 is chainable and as many as 27 lights can be run from a single power drop to save on installation costs. It also features wireless two-channel spectrum control and integrates with a wireless photo sensor for automated dimming depending on the amount of sunlight available. The Linear 400 uses passive cooling with no fans and has an IP rating of 65. Draws 380W with up to 3.5 µMoles/J efficacy.

MDL 400 Specifications

Input Voltage : <20 VDC

Nominal Wattage : 400

Operating Temp : 0-40C (32-107°F)

Dimensions : 30.5” x 3.1” x 5.4”

Weight : 10 LBS

LED lifetime Rating L90 : >100,000 hours

Warranty : 5 Years

Thermal Management : Passive

Dimming:0-100%

Specturm control : 2 Channel 0-100%

Light Output (PPF) : 1,044 μMoles/s

Efficacy (Up to) : 3.5 μMoles/s

Heat Output : 1365 BTU

Safety Compliance : UL 8750, CAN/CSA-C22.2 No.250.13
