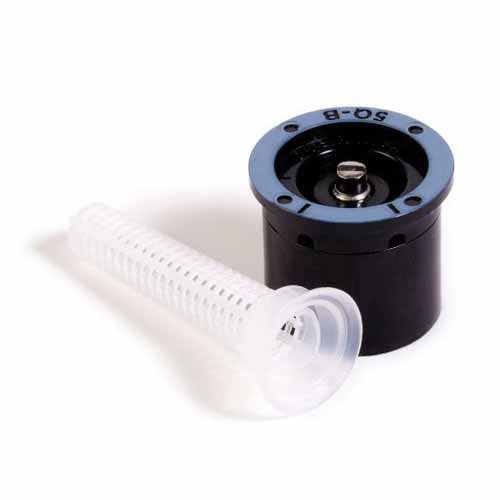

Rain Bird MPR Bubbler Nozzle 5' Quarter Circle Blue | A47029

Specifications

Brand	Rain Bird
Case Quantity	100
Nozzle Trajectory Angle	0°
Nozzle Radius	5 ft.
Nozzle Spray Pattern	Quarter Circle
Nozzle Type	Bubbler Nozzles
For Use With	All Rain Bird® Sprinklers and Shrub Adapters
UPC	753800000977

Rain Bird, Bubbler Nozzle, 5' 0° 90° Quarter Circle 0.5 gpm Blue MPR Series 5Q-B 5 ft. quarter-stream bubbler MPR nozzle Fixed Spray Pressure: 15 to 30 PSI Features and Benefits Trusted for decades, Rain Bird® MPR Nozzles are installed by more contractors than all other brands combined. MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same circuit while maintaining even water distribution rates. They fit all Rain Bird spray heads and shrub adapters. Matched precipitation rates across sets and across patterns in 5 Series, 8 Series, 10 Series, 12 Series, and 15 Series for even water distribution and design flexibility Blue fine-mesh (.02" x .02") filter screens (shipped with nozzles) maintain precise radius adjustment and prevent clogging Stainless steel adjustment screw to adjust flow and radius Fits all Rain Bird sprinklers and shrub adapters Meets small-area shrub or turf requirements Product Details Pattern: Quarter circle Type: Bubbler Series: MPR Spacing: 3 to 20 feet (0.9 to 4.6 m) Optimum pressure: 30 psi (2.1 bar) *Recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations.
