Rain Bird MPR Low Angle Flat Spray Nozzle 8' Quarter Circle | A47077

Specifications

Brand	Rain Bird
Case Quantity	100
Nozzle Radius	8 ft.
Nozzle Spray Pattern	Quarter Circle
Nozzle Type	Spray Nozzles
For Use With	All Rain Bird® Sprinklers and Shrub Adapters
UPC	753810014858

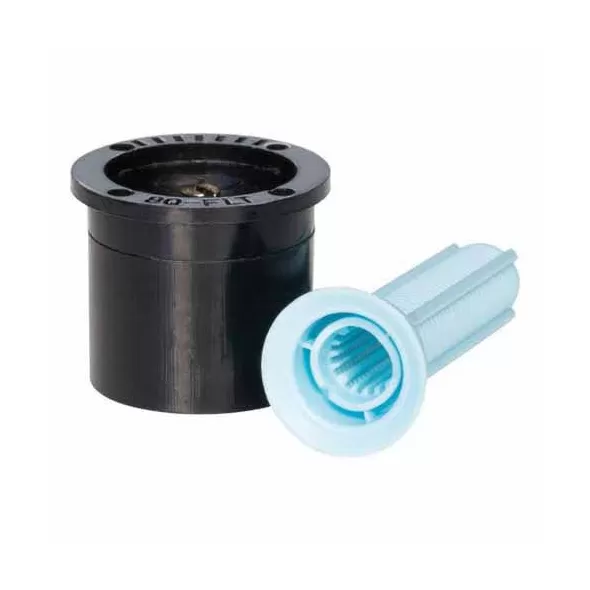

Rain Bird, Spray Nozzle, 8Q-FLT MPR Quarter Circle Green 8 ft. Quarter-Circle pattern FLT nozzle Fixed spray Pressure: 15 to 30 psi (1 to 2.1 bar) Features and Benefits Trusted for decades, Rain Bird MPR Nozzles are installed by more contractors than all other brands combined. MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same circuit while maintaining even water distribution rates. They fit all Rain Bird spray heads and shrub adapters. Matched precipitation rates across sets and across patterns in 5 Series, 8 Series, 10 Series, 12 Series, and 15 Series for even water distribution and design flexibility Blue fine-mesh (.02" x .02") filter screens (shipped with nozzles) maintain precise radius adjustment and prevent clogging Stainless steel adjustment screw to adjust flow and radius Fits all Rain Bird sprinklers and shrub adapters Lower water flow allows more spray heads per zone Product Details Nozzle Pattern: Quarter circle Nozzle Radius: 8 ft Nozzle Type: Fixed spray Nozzle Series: MPR Spacing: 3 to 20 feet (0.9 to 4.6 m) Pressure: 15 to 30 psi (1 to 2.1 bar) Optimum pressure: 30 psi (2.1 bar)*
