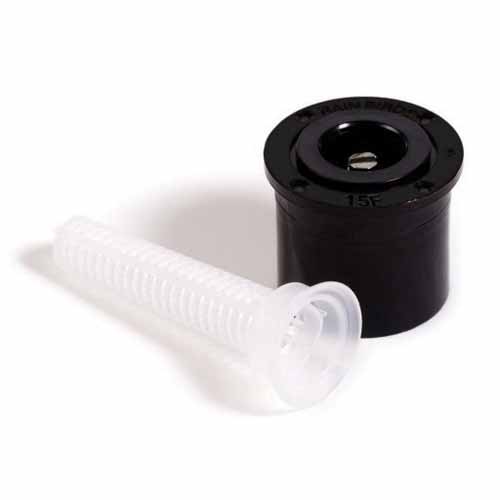

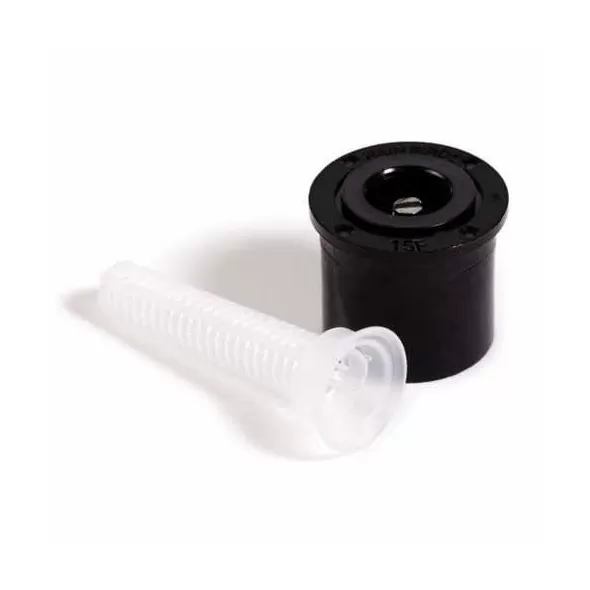

Rain Bird MPR Nozzle 15' Quarter Circle | A47005

Specifications

Brand	Rain Bird
Nozzle Trajectory Angle	30°
Nozzle Radius	15 ft.
Nozzle Spray Pattern	Quarter Circle
Nozzle Type	Spray Nozzles
For Use With	All Rain Bird® Sprinklers and Shrub Adapters
UPC	753800000731

Shop for Rain Bird 15Q Spray Nozzle 15 foot radius Quarter circle spray (90 degrees) Matched Precipitation Rate (MPR) nozzle Features and Benefits Trusted for decades, Rain Bird® MPR Nozzles are installed by more contractors than all other brands combined. MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same circuit while maintaining even water distribution rates. They fit all Rain Bird spray heads and shrub adapters. Sort Quicker, Install Faster, Check Easier! Rain Bird MPR Spray nozzles are color-coded on the top to enhance your productivity. Quickly identify radius and arc with Top Color-coded™ nozzles. Top Color-coding makes it easy to verify proper nozzle installation, even when system is not operating. Now it's easier to sort, easier to organize, and easier to install with Top Color-coded nozzles. Product Details 15 ft. quarter-circle pattern MPR nozzle Matched precipitation rates across sets and across patterns in 5 Series, 8 Series, 10 Series, 12 Series, and 15 Series for even water distribution and design flexibility 1800 Series white filter (.035" x .035") screens (shipped with nozzles) maintain precise radius adjustment and prevent clogging Stainless steel adjustment screw to adjust flow and radius Fits all Rain Bird sprinklers and shrub adapters Nozzle Pattern: Quarter circle Nozzle Radius: 15 ft Nozzle Type: Fixed spray Nozzle Series: MPR Spacing: 3 to 20 feet (0,9 to 4,6 m) Pressure: 15 to 30 psi (1 to 2,1 bar) Optimum pressure: 30 psi (2,1 bar)* * Rain Bird recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations.
