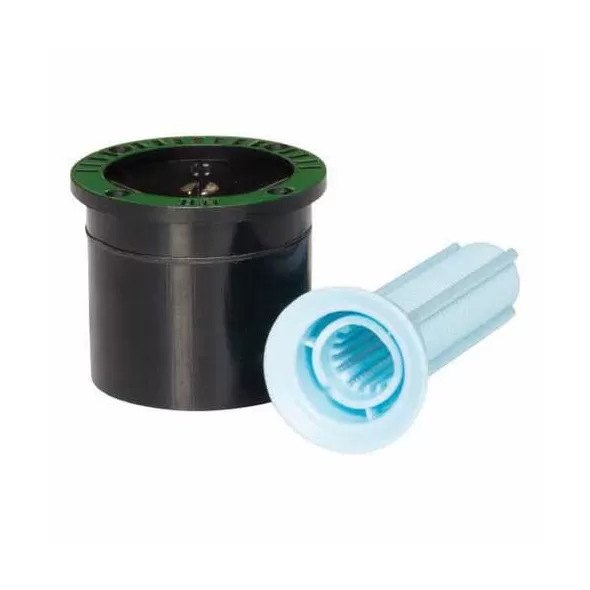

Rain Bird MPR Nozzle 8' Half Circle | A4701901

Specifications

Brand	Rain Bird
Case Quantity	250
Nozzle Trajectory Angle	10°
Nozzle Radius	8 ft.
Nozzle Spray Pattern	Half Circle
Nozzle Type	Spray Nozzles
For Use With	All Rain Bird® Sprinklers and Shrub Adapters
UPC	753800006306

Rain Bird Spray Nozzle, MPR 8' Half Circle Green 8 ft. half-circle pattern MPR nozzle Fixed spray Pressure: 15 to 30 psi (1 to 2.1 bar) Features and Benefits Trusted for decades, Rain Bird® MPR Nozzles are installed by more contractors than all other brands combined. MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same circuit while maintaining even water distribution rates. They fit all Rain Bird spray heads and shrub adapters. Matched precipitation rates across sets and across patterns in 5 Series, 8 Series, 10 Series, 12 Series, and 15 Series for even water distribution and design flexibility Blue fine-mesh (.02" x .02") filter screens (shipped with nozzles) maintain precise radius adjustment and prevent clogging Stainless steel adjustment screw to adjust flow and radius Fits all Rain Bird sprinklers and shrub adapters Lower water flow allows more spray heads per zone Product Details Spacing: 3 to 20 feet (0.9 to 4.6 m) Optimum pressure: 30 psi (2.1 bar)* * Recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations.
