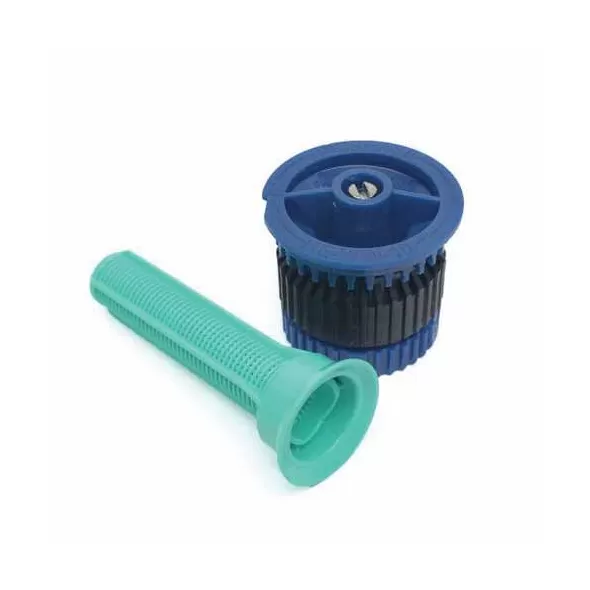

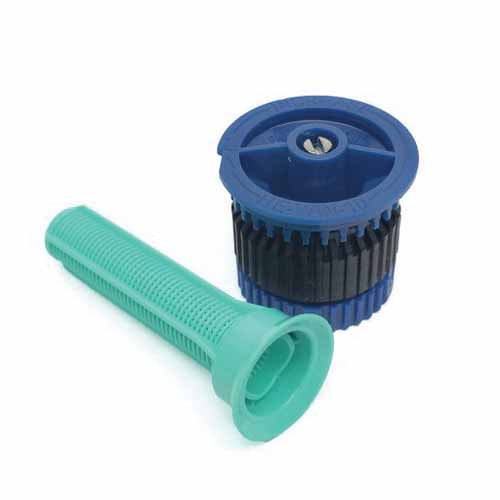

Rain Bird Spray Nozzle, 10' 90 - 360° Arc 1.26 - 1.78 Gpm | HE1001

Specifications

Brand	Rain Bird
Case Quantity	250
Nozzle Radius	10 ft.
Nozzle Spray Pattern	Adjustable
Nozzle Type	Spray Nozzles
For Use With	Green Very Fine Mesh Filter Screen, 0.010 x 0.013 in. to Prevent Clogging
UPC	077985030384

Shop for Rain Bird HE-VAN High Efficiency Adjustable Nozzle 10 ft 10 ft. high-efficiency variable arc sprinkler nozzle HE-VANs dramatically reduce zone run times Full Adjustable arc from 0Ëš to 360Ëš Features and Benefits Patent-pending Flow Control Technology delivers superior close-in watering and uniform coverage across the entire spray pattern. Rain Bird HE-VAN Nozzles achieve greater than a 70% average DULQ””more than a 40% improvement over existing variable arc nozzles Meet tight watering windows with ease Use with green very fine mesh filter screen, 0.010 in x 0.013 in (included) In addition to water savings, you will conserve energy and reduce system wear and tear Matched precipitation rates allow you to install Rain Bird® HE-VAN, MPR, and U-Series Nozzles on the same zone Product Details Nozzle Pattern: Adjustable arc Nozzle Radius: 10 ft Nozzle Type: Fixed spray, High-efficiency Nozzle Series: HE-VAN Operating Range: Pressure: 15 to 30 psi (1.0 to 2.1 bar) Optimum Pressure: 30 psi (2.1 bar) Specifications: Rain Bird HE-VAN Nozzles deliver an average DULQ of 70%, more than a 40% improvement over typical variable arc spray nozzles. Rain Bird HE-VAN Nozzles deliver a SC less than or equal to 1.6, which is 35% lower than the typical variable arc spray nozzle.
