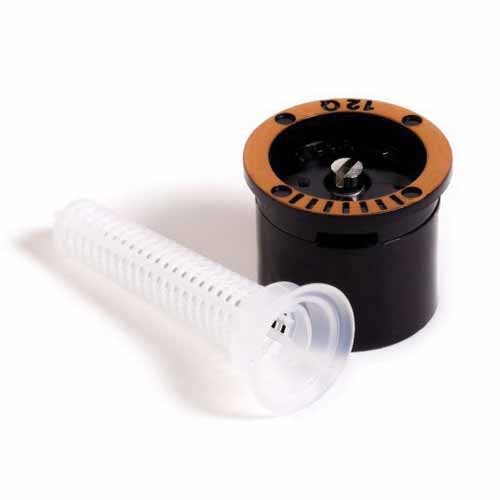

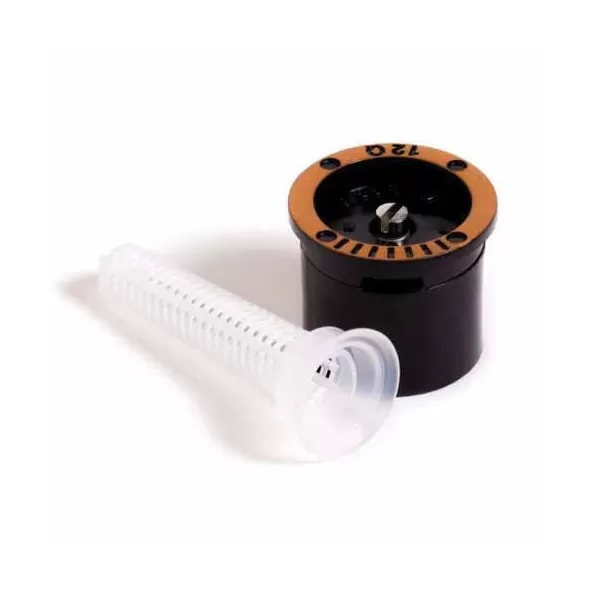

Rain Bird Spray Nozzle, 12' 30° 90° Quarter Circle 0.45 - 0.65 Gpm Brown | A47014

Specifications

Brand	Rain Bird
Case Quantity	100
Nozzle Trajectory Angle	30°
Nozzle Radius	12 ft.
Nozzle Spray Pattern	Quarter Circle
Nozzle Type	Spray Nozzles
For Use With	All Rain Bird® Sprinklers and Shrub Adapters
UPC	753800000823

Rain Bird Spray Nozzle, 12' Quarter Circle Brown 12 ft. quarter-circle pattern MPR nozzle - 12Q Fixed Spray Pressure: 15 to 30 PSI Features and Benefits Trusted for decades, Rain Bird® MPR Nozzles are installed by more contractors than all other brands combined. MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same circuit while maintaining even water distribution rates. They fit all Rain Bird spray heads and shrub adapters. 12 ft. quarter-circle pattern MPR nozzle Matched precipitation rates across sets and across patterns in 5 Series, 8 Series, 10 Series, 12 Series, and 15 Series for even water distribution and design flexibility 1800 Series white filter (.035" x .035") screens (shipped with nozzles) maintain precise radius adjustment and prevent clogging Stainless steel adjustment screw to adjust flow and radius Fits all Rain Bird sprinklers and shrub adapters Product Details Spacing: 3 to 20 feet (0.9 to 4.6 m) Pressure: 15 to 30 psi (1 to 2.1 bar) Optimum pressure: 30 psi (2.1 bar) * Recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations.
