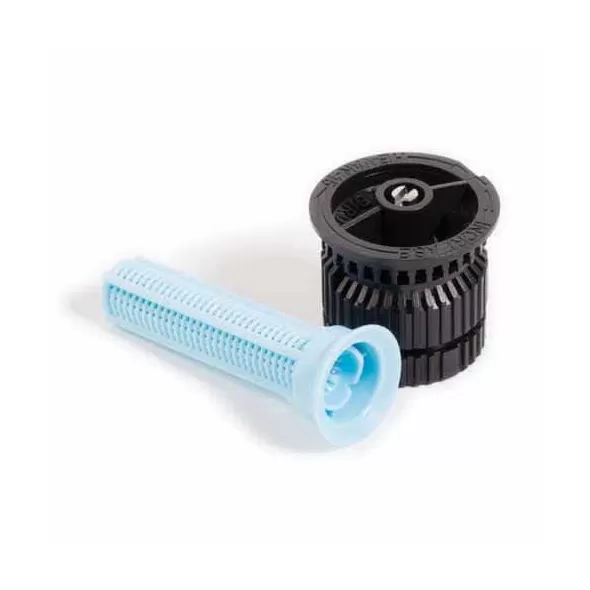

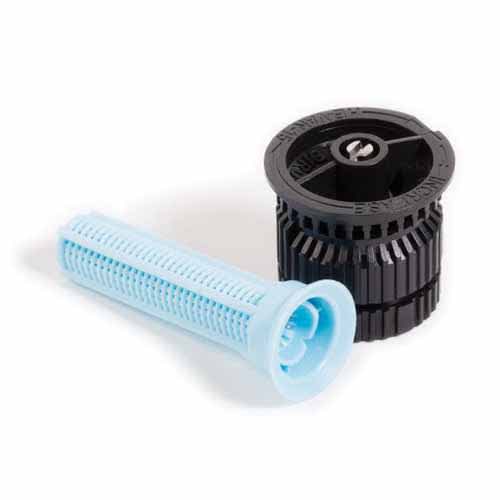

Rain Bird Spray Nozzle, 15' 90 - 360° Arc 2.62 - 3.7 Gpm | HE1501

Specifications

Brand	Rain Bird
Case Quantity	250
Nozzle Radius	15 ft.
Nozzle Spray Pattern	Adjustable
Nozzle Type	Spray Nozzles
For Use With	Green Very Fine Mesh Filter Screen, 0.010 x 0.013 in. to Prevent Clogging
UPC	077985020279

Shop for Rain Bird HE-VAN High Efficiency Adjustable Nozzle 15 ft 15' Arc Adjustable Nozzle 0° to 360° Female threaded to fit male threaded sprays and adapters Features and Benefits Easy arc adjustment from 0° to 360° with a simple twist of the center collar to increase or decrease arc setting ExactEdge takes the guesswork out of arc adjustment. As you turn the nozzle to the desired arc setting, youll feel it lock into place for a clean, consistent edge every time Patent pending Flow Control Technology provides superior close-in watering and uniform coverage across the entire pattern Thicker streams and large water droplets for greater wind resistance. Matched precipitation rates with Rain Bird MPR and U-Series Nozzles. A strong top deflector to minimize nozzle damage due to normal wear and tear. No special tools required. Stainless steel adjustment screw to adjust flow and radius, up to a 25% reduction in radius. Shipped with appropriate filter screens to maintain precise radius adjustment and prevent clogging. Fits on all Rain Bird 1800 Series Spray Heads, UNI-Spray Series Spray Heads and Rain Bird Shrub Adapters. HE-VAN15 15 ft Adjustable Nozzle Rain Bird HE-VAN Nozzles deliver an average Distribution Uniformity of 70%, more than a 40% improvement over typical variable arc spray nozzles Rain Bird HE-VAN Nozzles deliver a Scheduling Coefficient (measure of how long a zone must be run in order to provide adequate water to the driest spot) â°Ã‚¤ 1.6, which is 35% lower than the typical variable arc spray nozzle. Operating Range HE-VAN-08: 6 to 8 feet (1.8 to 2.4 m) HE-VAN-10: 8 to 10 feet (2.4 to 3.0 m) HE-VAN-12: 10 to 12 feet (3.0 to 3.7 m) HE-VAN-15: 12 to 15 feet (3.7 to 4.6 m)
