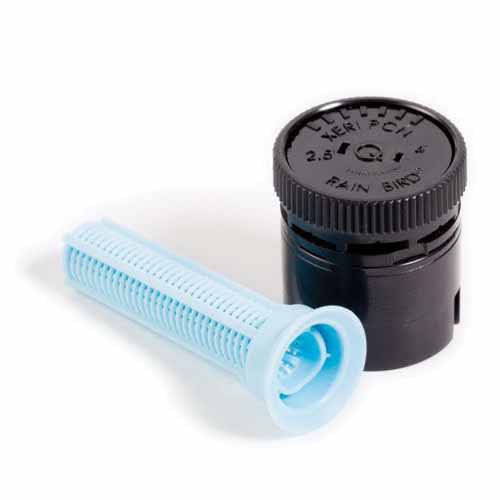

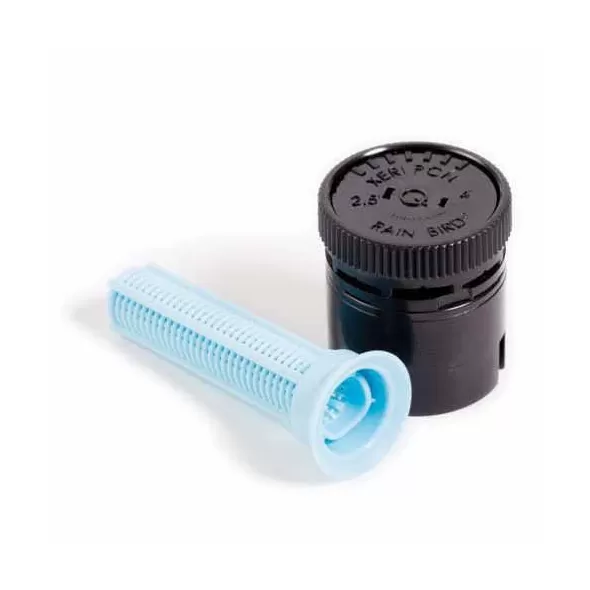

Rain Bird SQ Nozzle 2.5' - 4' Quarter Square | X54902

Specifications

Brand	Rain Bird
Nozzle Radius	2.5 or 4 ft.
Nozzle Type	Spray Nozzles
For Use With	All 1800 Sprays, Xeri-Pops, PolyFlex Riser Adapter, UNI-Spray, and Schedule 80 risers
UPC	739460025628

Rain Bird SQ Full Square Nozzle 2.5 ft or 4 ft 2.5 ft or 4 ft. spray nozzle with full-square spray pattern (360 Degree) Fixed spray Pressure: 20 to 50 psi (1.4 to 3.5) Features and Benefits The SQ Series is the most precise and efficient, low-volume spray solution for irrigation of small areas with dense plantings. The SQ Series' square spray pattern and pressure compensation offers increased efficiency and control, reducing overspray, property damage and liability. Unique edge-to-edge capability reduces the number of nozzles needed, which decreases cost and dramatically reduces installation time. Simplify design and installation with the flexibility of applications: one nozzle throws 2.5' or 4' (0.8m or 1.2 m) and can be used on a variety of spray heads and risers. It even meets micro irrigation system requirement for less than 26 gph flow rate at 30 psi. SQ Series nozzles provide up to 65% water savings, and are great for narrow planting beds, parking lot islands, walkways, parkways, and street medians. SQ Nozzle, full pattern Square spray pattern with edge-to-edge coverage allows you to easily design and install in small spaces Pressure compensation design delivers uniform flow over the pressure range Virtual no-mist performance from 20 psi to 50 psi Shipped with blue filter screen (0.02" x 0.02") to maintain precise distance of flow, and to prevent clogging Compatible with all 1800 Sprays, Xeri-Pops, PolyFlex Riser Adapter, UNI-Spray, and SCH 80 risers Product Details Nozzle Pattern: Square pattern Nozzle Radius: 2.5 or 4 ft Nozzle Type: Fixed spray Nozzle Series: SQ Pressure range: 20 to 50 psi (1.4 to 3.5) Flow rates: 20.0 - 27.3 gph Required filtration: 40 mesh
