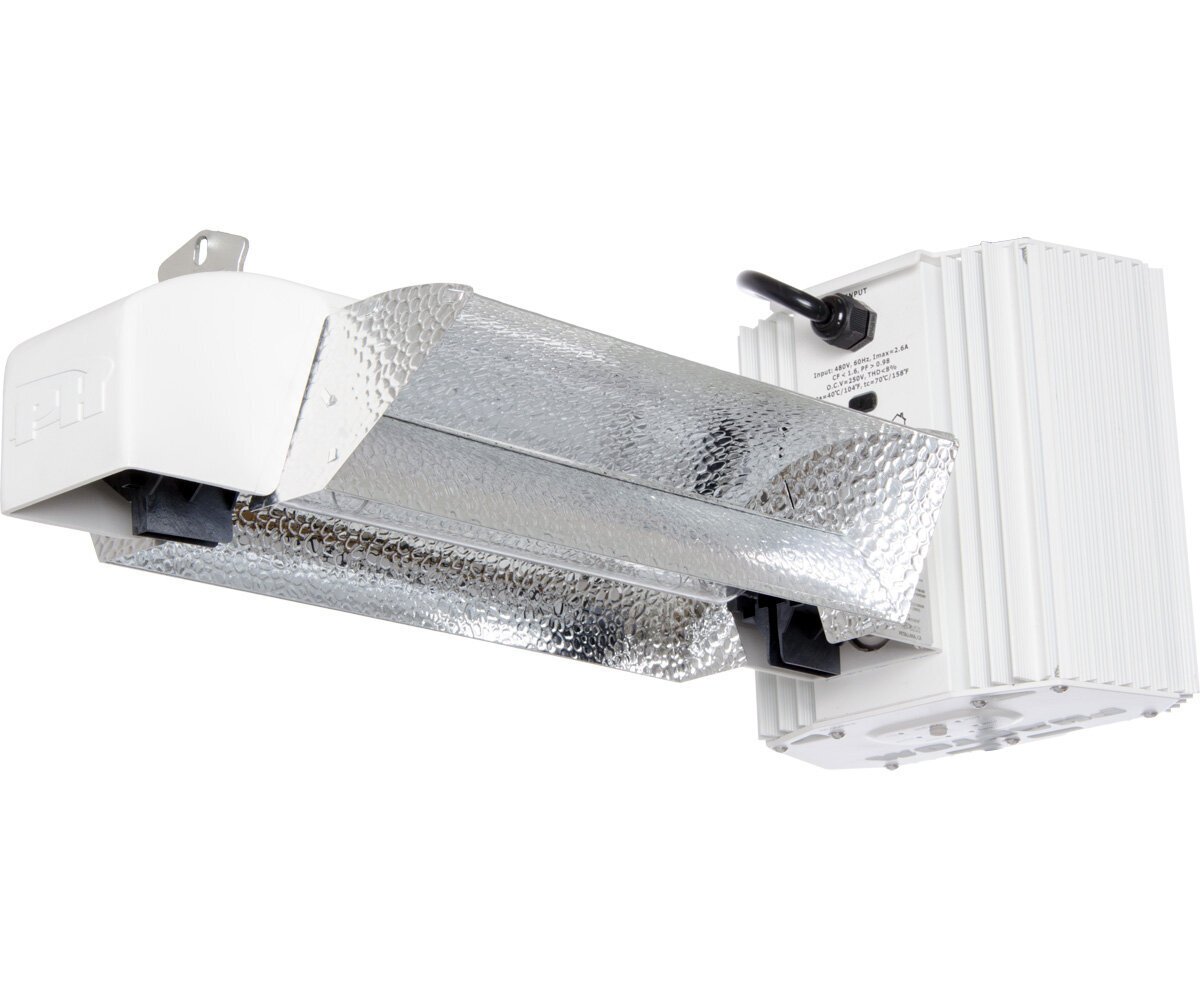

Phantom 50 Series, DE Open Lighting System, 1000W, 480V

The Phantom 50 Series DE Open Lighting System is a high-tech horticultural lighting product designed for commercial growers. The system features double-ended (DE) technology, providing even light distribution and optimal photosynthetically active radiation (PAR). It is specifically developed to suit large-scale indoor settings and greenhouse farming, offering reliable and energy-efficient lighting solutions.

Extensive Phantom 50 series Components

The Phantom 50 Series DE Open Lighting System works based on a number of parts that collaborate to guarantee effective and reliable lighting.

480V Phantom Commercial DE Ballast PHB5030

The key component of this structure is the PHB5030 ballast that controls the work of this system and gives rise to a lot of advantages:

• USB Interface: Enables easy access to Autopilot PX Series Advanced Lighting Controllers, allowing for the control of lights via scheduling and intensity.
• Variable Wattage: There is an option for variable lamp power ratings, ranging from 600W to 1150W, providing flexibility to cater to different growing needs.
• Microprocessor Control: It enables accurate and dependable running.
• Auto-Restrike Feature: This is the protection of the lamps by automatically restarting power in case of interruption.
• End of Lamp Life Signal: It alerts users when it would be good to change the lamp in order to maintain optimum performance.
• Cooling Fins: Release heat and do not allow overheating, making the ballast last longer.

Open Reflector Design

The open reflector is designed to perfectly complement the DE lamp and ballast, delivering an amazing distribution of light to the plant and keeping the environment cool.

• Double-Ended Technology: In this design, higher PAR values are targeted, hence the plants receive all the light they require to grow well.
• Effective Light Use: The lamps have the maximum light output and less buildup of heat due to the open design, therefore having an extended life.
• Top quality Aluminum Interior: The reflecting surface is a very high-quality aluminum with a 95 % reflectivity, ensuring that each photon that is fired gets directed precisely where it has to be.
• Compact Size: The size of the product is so small that you can install the Phantom 50 Series in spaces that are small, such as a greenhouse, and still allow natural sunlight to enter.

Premium DE Lamp

The DE lamp, which is supplied with the Phantom 50 series, is a highly efficient and powerful growth de lamp.

• Super High PAR Output: 2100 umol/s. This lamp stimulates photosynthesis and strengthens plants.
• Quartz Glass Outer Jacket: The borrowed optical quality of the lamp is enhanced by the outer jacket that allows greater light to reach the plants.
• Red and blue light spectrum: The lamp contains a lot of red and blue light that enhances effective photosynthesis.
• Shadow-Free Development: The brilliant geometry of the lamp eliminates the shadow, and the illumination by the lamp is even at all times in all components of the plant.

Compliant with Energy Efficiency Standards

The Phantom 50 Series DE Open Lighting System complies with 2022 Building Energy Efficiency Standards ( Title 24, Part 6, Section 120.6) of California and applies to any indoor growing space and greenhouse. The standards guarantee that the lighting system should be highly energy-efficient and environmentally friendly.

Important Considerations

When installing and operating the Phantom 50 Series DE Open Lighting System, a few details concerning setting up and usage should be kept in mind:

• Line Conditioning: To prevent damage to the ballast, it is necessary to apply line conditioning equipment that helps to control voltage fluctuations. This makes it easier to run the system and prevent the possible occurrence of problems.
• Lamp not supplied: Customers should be informed that the lamp must be purchased separately and will be required to buy it in conjunction with the ballast and reflector system.

Summary

The Phantom 50 Series DE Open Lighting System is a product featuring highly advanced features in the horticultural lighting system, including preset wattage, superior light distribution, and energy efficiency. It is highly flexible and easy to handle, making it the best commercial option when growing inside commercial houses and greenhouses.
