Description

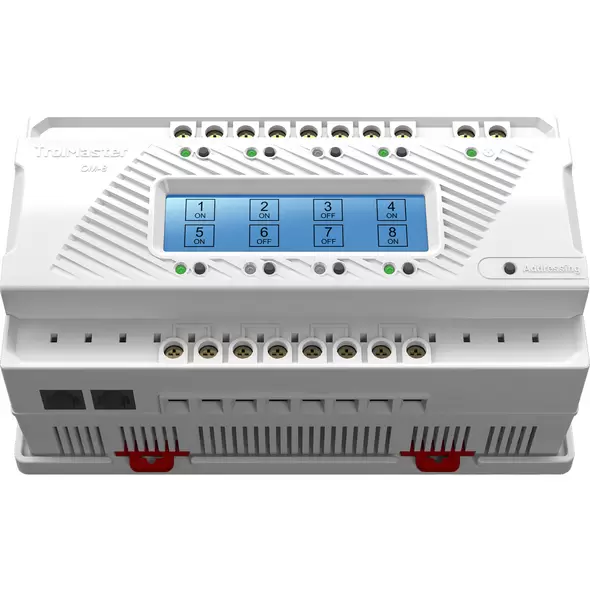

TrolMaster (OM-8) Dry Contact Board

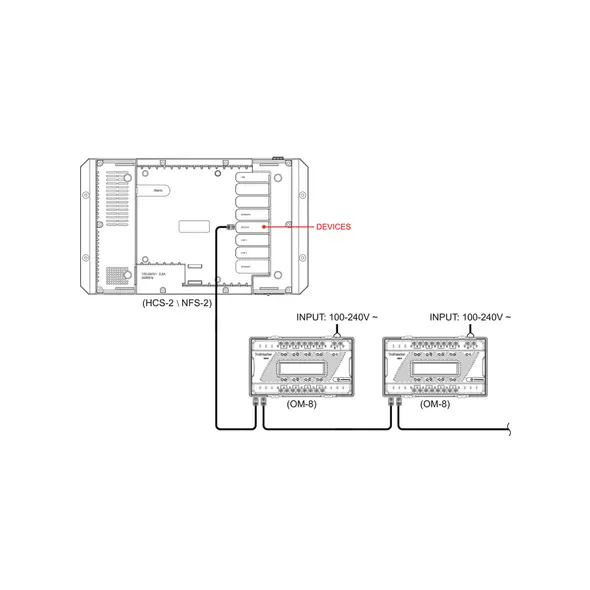

TrolMaster's OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts, and allows up to 12 Amp current through each contact. *The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC.
Features & Benefits:
Package Content:
TrolMaster's OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts, and allows up to 12 Amp current through each contact. *The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC.
Features & Benefits:
- LCD Display, easy to set up and use
- Easy installation
- Overload protection on each of the 8 outputs @ 12 amps
- Each contact can be forced open or closed for a duration of 30 minutes
Package Content:
- 1x OM-8
- 1x 16 ft RJ12 Cable
- Max Relay Amperage:12A Per Output
- Working Temperature:32-104°F
- Working Humidity:≤90%
- Package Dimensions:255mm(L) x 135mm(W) x 95mm(H)
