Description

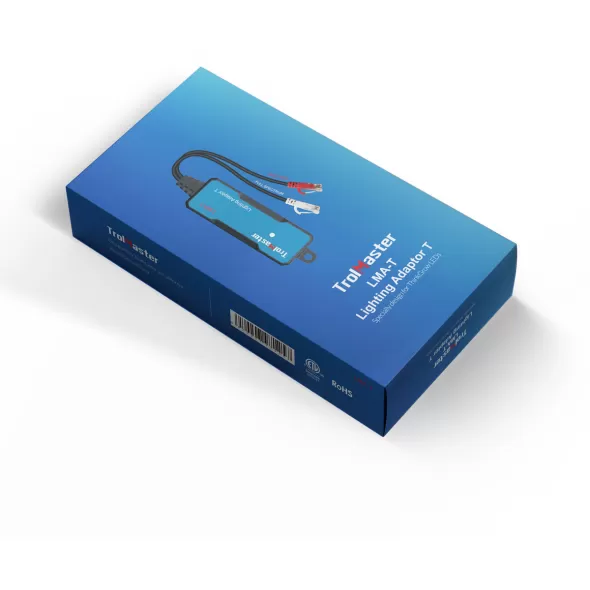

TrolMaster (LMA-T) Lighting Adapter-T for Hydro-X System
TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.
The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full-spectrum and deep red output levels on the ThinkGrow LEDs.
The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the deep red LEDs.
The LMA-T then is connected to the RJ-type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.
One adaptor could run up to 256 LEDs.
* Convert RJ12 to Water Proof Connector Cable included.
Features & Benefits:
Package Content:
Specification:
TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.
The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full-spectrum and deep red output levels on the ThinkGrow LEDs.
The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the deep red LEDs.
The LMA-T then is connected to the RJ-type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.
One adaptor could run up to 256 LEDs.
* Convert RJ12 to Water Proof Connector Cable included.
Features & Benefits:
- LED Indicator
- Plug & Play
Package Content:
- 1x LMA-T
- 1x RJ12 to customized waterproof connector
- 1x ECS-9 cable
Specification:
- Output Voltage : 0~11.5V
- Maximum Current : 0.2A
- Working Temperature : 32-122°F
- Working Humidity : ≤90%
- Packaging Dimensions : 156mm(L) x 83mm(W) x 30mm(H)
