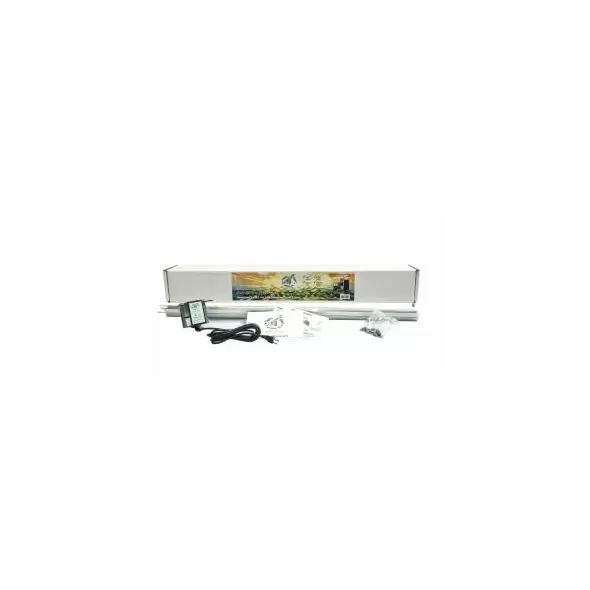

Light Rail 3.5 IntelliDrive Kit With RoboBar For Stabilizing Larger LED Grow Lights

The LightRail 3.5 IntelliDrive Kit with RoboBar is a high-performance grow light mover designed for larger LED grow lights. Featuring intelligent drive technology and the patent-pending RoboBar, this system ensures smooth, stable light movement across a broader area. With an adjustable travel distance, time delay settings, and enhanced stability, the LightRail 3.5 optimizes light coverage and plant growth efficiency.

Enhanced Light Movement for Maximum Coverage

Smart IntelliDrive Motor for Precision Control

The LightRail 3.5 IntelliDrive Motor is engineered for precise and reliable movement, allowing LED grow lights to cover 50% more linear area than stationary setups. Continuously moving prevents hotspots, eliminates shadowed areas, and improves overall light efficiency for healthier plant growth.

• It operates on only 5 watts of power, making it highly energy-efficient.
• Moves lights smoothly along the 6'6" (2m) Rail for consistent light distribution.
• Adjustable travel speed to suit different grow room layouts and requirements.

Adjustable Time Delay for Balanced Growth

To ensure uniform light exposure, the LightRail 3.5 comes with a 0-60 second time delay at each end of travel. This pause allows plants at the edges of the grow space to receive equal light, promoting even canopy growth and higher yields.

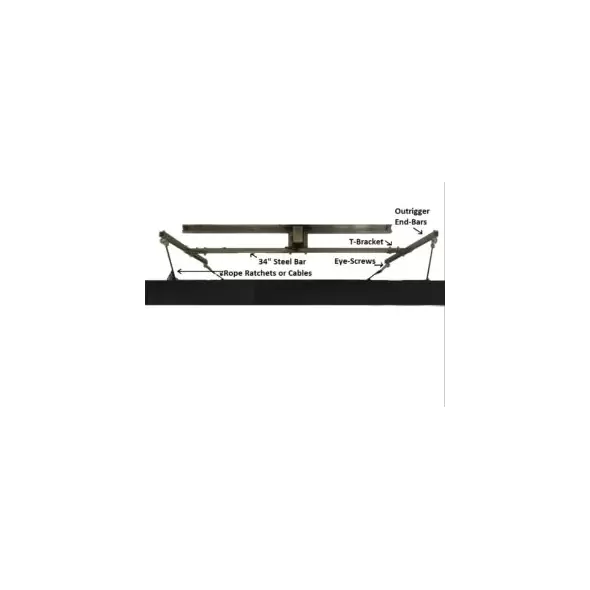

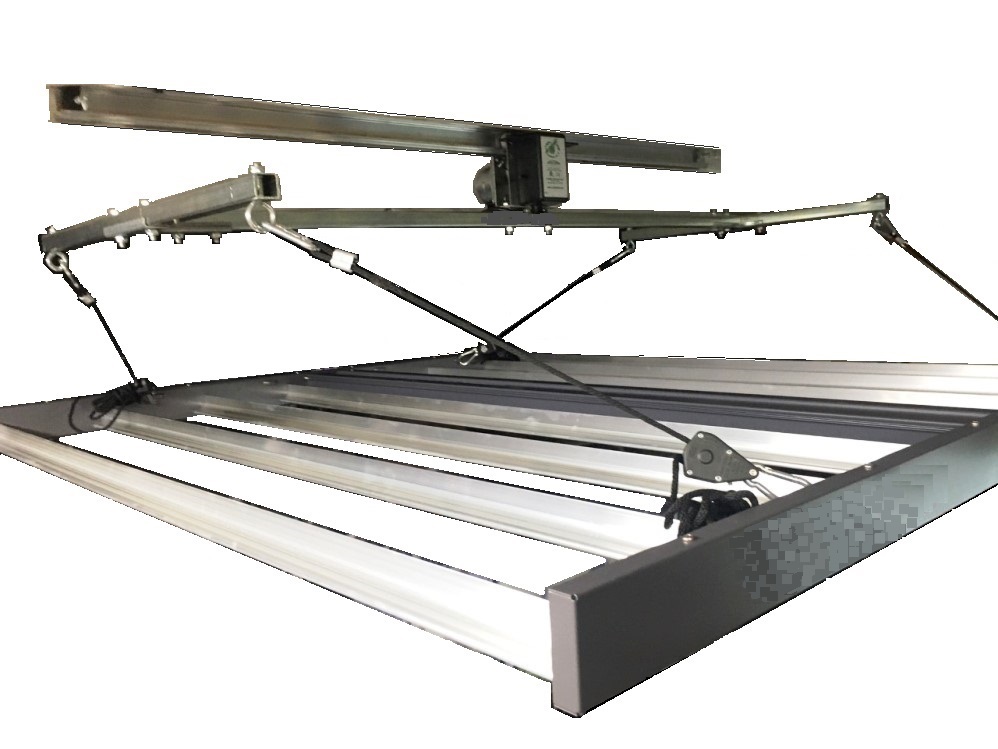

RoboBar for Ultimate Stability

Patent-Pending Triangulated Design

The RoboBar (40" x 30" | 102cm x 75cm) introduces an innovative stabilizing structure that enhances LED light movement by eliminating swaying or swinging. Key features include:

• Four-point hanging system for superior stability.
• Triangulated, acute-angled hanging points to secure large LED panels.
• Heavy-duty T-bar connectors for extra durability.

Compatibility with Large LED Grow Lights

The RoboBar is designed explicitly for oversized rectangular LED grow lights, including all 4'x4' (1.2m x 1.2m) fixtures. Its four hanging points ensure proper alignment and prevent shifting during motion.

• Works with all brands and sizes of LED grow lights.
• Compatible with rope ratchets or cables for easy installation.
• It helps position the light closer to the motor, saving vertical space.

Seamless Installation and Expandability

Easy Hanging System for Secure Mounting

The LightRail 3.5 Kit with RoboBar is designed for hassle-free installation. If your LED grow light comes with only two hanging cables, purchase two additional wires to achieve the required four-point support.

• Ensures stable movement without wobbling or tilting.
• Works with standard rope ratchets or adjustable hanging kits.
• It avoids using centered wire harp hangers, which do not provide adequate support.

Expandable System for Multiple Lights

The LightRail 3.5 system supports multi-light configurations, allowing up to three grow lights to move sequentially using the Add-A-Lamp Kit. This setup enhances light distribution while reducing energy consumption.

• Add-A-Lamp Extender Rods connect multiple RoboBars for extended coverage.
• Each 6'6" (2m) Rail can be spaced 1-3 feet apart to optimize light spread.
• Lights overlap coverage zones, ensuring consistent illumination across the growing area.

Advanced Features for Optimal Growth

Adjustable Travel Distance for Custom Light Positioning

The LightRail 3.5 allows growers to customize travel distance based on their specific grow room setup. The Switch Stop stoppers can be adjusted to create a travel path between 3-4 feet, illuminating up to a 7-8 foot growing area.

• Reduces plant stretching by delivering consistent light exposure.
• It is ideal for grow tents, commercial grow rooms, and greenhouse setups.
• Supports both horizontal and vertical installations.

Heavy-duty construction for Long-Term Durability

This system is designed with Extreme Duty Trolley Wheels, ensuring smooth and quiet operation over time. The reinforced motor and rail system are built to withstand continuous use in high-intensity indoor farming environments.

Electrical Compatibility and Power Efficiency

Low-Power Consumption for Cost Savings

Operating at just 5 watts, the LightRail 3.5 IntelliDrive Kit is one of the most energy-efficient light movers available. Its low-power motor ensures minimal electricity costs while delivering maximum plant benefits.

North America-Compatible Voltage

The LightRail 3.5 is designed explicitly for 110V electrical systems (North American standard) and is incompatible with 220V power sources. Always check your electrical setup before purchasing.

Final Words

The LightRail 3.5 IntelliDrive Kit with RoboBar is an essential tool for growers looking to maximize plant growth while maintaining energy efficiency. With its smooth motion, adjustable settings, and enhanced stability, this system eliminates uneven light distribution and ensures consistent, high-quality yields. Whether using a single large LED panel or a multi-light system, the LightRail 3.5 delivers precision, reliability, and top-tier performance.
