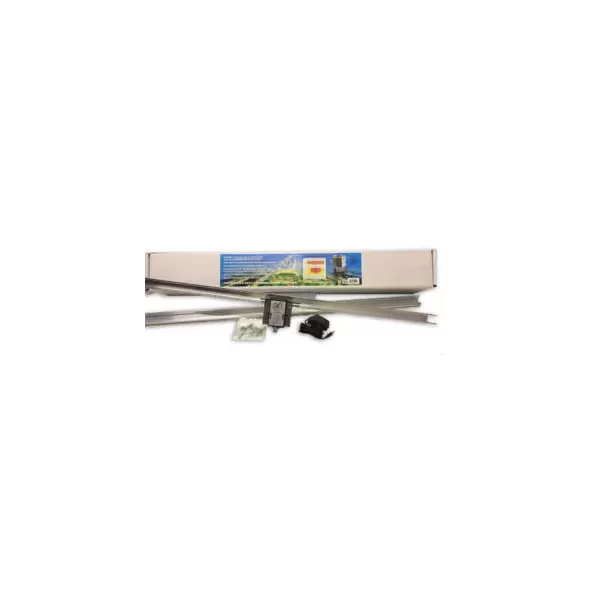

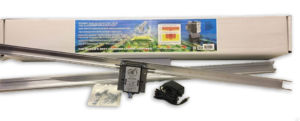

Light Rail 4.0 AdjustaDrive Kit With RoboBar

The Light Rail 4.0 AdjustaDrive Kit with RoboBar is a high-performance grow light mover explicitly designed for larger 4’x4′ LED grow lights. This kit enhances light distribution, increases coverage area by up to 50% strong, and provides stable and sway-free movement. It is the ideal solution for commercial growers and indoor cultivators seeking maximum efficiency and optimal plant growth, featuring adjustable speed, time delay settings, and innovative design elements.

Key Features of the Light Rail 4.0 AdjustaDrive Kit with RoboBar

Optimized Light Distribution for Larger LED Grow Lights

The Light Rail 4.0 AdjustaDrive Kit with RoboBar ensures even light distribution across a larger surface area, reducing hotspots and improving overall plant health. Precise motorized movement eliminates uneven light exposure, ensuring balanced growth from edge to edge.

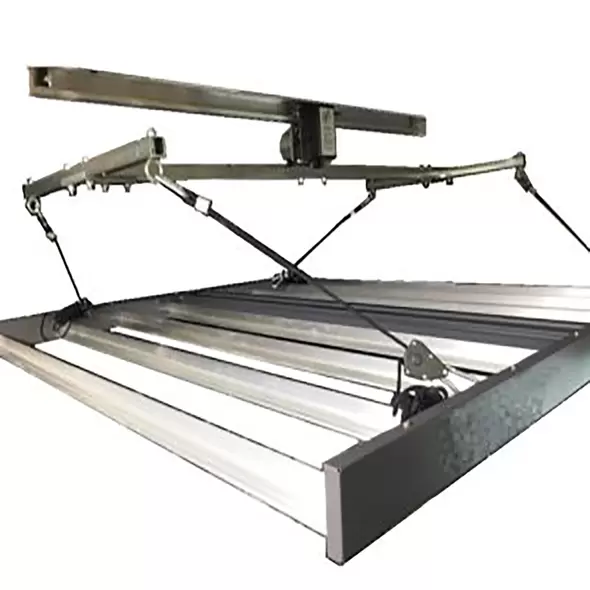

With the addition of RoboBar, a structural support system, this light mover accommodates larger LED grow lights while preventing excess swaying. The triangulated hanging design secures the LED panel, eliminating unnecessary movement and allowing for a consistent and stable lighting experience.

Energy-Efficient Light Mover with Adjustable Speed and Time Delay

This system uses a low-energy 9-watt motor, making it an economical yet highly effective tool for indoor growers. The AdjustaDrive Motor features:

• At each end, a 0 to 60-second delay allows for enhanced light absorption.
• 2 to 4 feet per minute adjustable speed, providing precise control over light exposure and movement.
• Preinstalled Extreme Duty Trolley Wheels for smooth operation and enhanced durability.

RoboBar: Advanced Structural Support for Stability

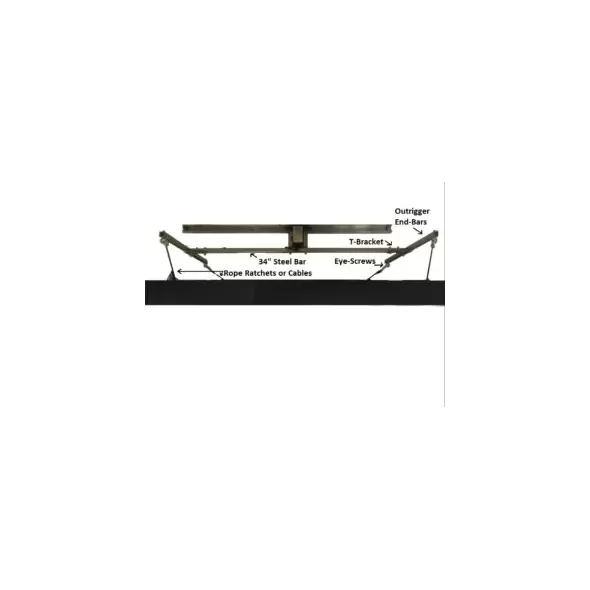

The patent-pending RoboBar is an 86cm x 75cm (34” x 30”) support system consisting of:

• Two outriggers
• One center bar
• Two heavy-duty T-bar connectors
• Four corner eye screws for secure hanging

The RoboBar’s specialized anti-sway design ensures that even large LED panels remain stable along the rail. This triangulated, acute-angled hanging system prevents shifting and maximizes vertical space efficiency by positioning the light closer to the motor.

Easy Installation and Compatibility

The Light Rail 4.0 AdjustaDrive Kit with RoboBar is compatible with all Light Rail 3.0, 3.5, and 4.20 Rails, allowing growers to integrate it effortlessly into existing setups.

Installation is straightforward:

• Align the four hanging points of your LED grow light with the four hanging points of the RoboBar.
• If your LED fixture had only two rope ratchets or hanging cables, purchase two additional ones to ensure four-point hanging stability.
• Avoid using centered hanging points like metal wire harps, as the RoboBar requires four secure attachment points for optimal performance.

Expandable System for Multiple Lights

Growers can move up to three LED grow lights in a row using the Add A Lamp Kit, which now includes an Add A Lamp Extender Rod for accommodating larger light setups.

• Each 6’6” (2m) Rail should be spaced 1-3 feet apart to optimize light coverage.
• Gap areas will still receive significant light exposure due to the wide spread of the moving grow lights.
• Recommended travel setting: Place the Switch Stop stoppers 3 to 4 feet apart to light a 7 to 8-foot space, depending on the grow light size.

Reliable Power and Global Compatibility

The Light Rail 4.0 AdjustaDrive Kit with RoboBar operates on 110-240V, making it compatible with electrical systems worldwide. This ensures seamless operation regardless of geographic location.

Final Words

The Light Rail 4.0 AdjustaDrive Kit with RoboBar is a game-changer for indoor growers using larger LED lights. It provides stability, increased coverage, energy efficiency, and enhanced plant growth. Its innovative structural support, adjustable settings, and expandable design make it an essential tool for commercial and large-scale home growers looking to maximize light efficiency.

LightRail RoboBar: Maximize Yields with Moving Grow Lights!
