Light Rail Add A Lamp Kit - Extreme Duty Trolley Wheels Now as Standard - Light Mover Grow Light System

The Light Rail Add-A-Lamp Kit is the ultimate solution for extending your grow light mover system, allowing growers to efficiently move a second or third indoor grow light from a single LightRail light mover motor. Designed for LightRail 3.0, 3.5, 4.0, and 4.20, this kit enhances grow light coverage, reduces shading, and ensures even light distribution for optimal plant growth.

With pre-installed Extreme Duty Trolley Wheels, rated for up to 60 lbs, the Add-A-Lamp Kit offers smooth and reliable performance, supporting additional grow lights in an automated indoor growing system.

Key Features and Benefits

Move Multiple Grow Lights with One LightRail System

• Expands grow light coverage: Move an additional grow light in-line for wider plant exposure.
• Supports up to three lights: Connect multiple Add-A-Lamp Kits for a larger grow area.
• Pre-installed Extreme Duty Trolley Wheels: Designed for heavy-duty use, supporting up to 60 lbs.
• Works with existing LightRail systems: Fully compatible with LightRail 3.0, 3.5, 4.0, and 4.20.

This innovative system eliminates the need for multiple motors, making grow light automation more efficient and cost-effective.

What's Included in the Add-A-Lamp Kit?

The Add-A-Lamp Kit comes as a complete package, providing everything needed to integrate an additional grow light into your system seamlessly:

• Two-piece, 2-meter LightRail Rail (6'6" total length)
• 6' push/pull rod for controlled movement
• Auxiliary Trolley with Extreme Duty Trolley Wheels
• Complete hardware set for secure mounting
• Step-by-step installation instructions

How the Add-A-Lamp Kit Works

Simple Integration with LightRail Systems

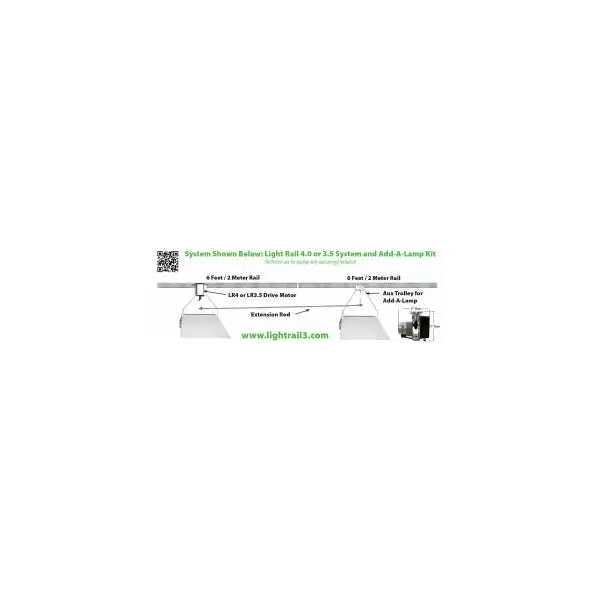

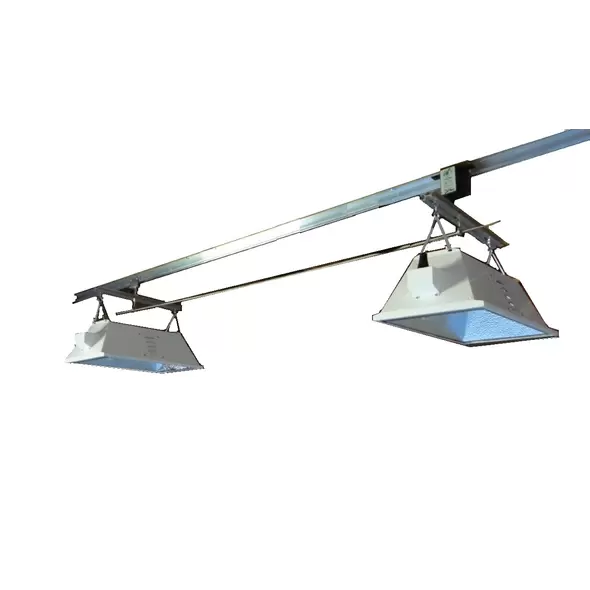

The Add-A-Lamp Kit extends grow light automation by adding an extra rail and trolley, allowing another indoor grow light to move along the system. The push/pull rod connects to the Auxiliary Trolley, ensuring synchronized movement with the LightRail motor, optimizing light spread and reducing plant shading.

This setup allows the grower to adjust:

• Run length: Modify the distance the light travels.
• Grow light spacing: Customize light placement for maximum efficiency.

Custom Configurations for Two or Three Grow Lights

Depending on the size of the grow space, multiple Add-A-Lamp Kits can be used:

• Pair an Add-A-Lamp Kit with a LightRail 3.5 or 4.0 Kit for two grow lights in-line.
• Combine two Add-A-Lamp Kits with a LightRail 3.5 or 4.0 Kit for three grow lights in-line.
• For LightRail 4.20: The kit includes one Add-A-Lamp Kit for easy expansion.

This modular system allows growers to expand their indoor growing operation efficiently.

Optimizing Grow Light Spacing for Maximum Yield

Adjustable Rail Gaps for Custom Setup

In DIY light mover configurations, growers can refine their light coverage by utilizing 1-3 foot gaps between rail halves. This allows:

• More flexible light positioning
• Better coverage of "gap plants" from both sides
• Improved efficiency in indoor grow rooms

For larger LED grow lights, the Add-A-Lamp Kit integrates seamlessly with RoboBars and extra hardware, ensuring:

• Smooth movement over gapped rails
• Optimized light coverage for more expansive growing areas

Recommended Settings for Light Movement

Travel Distance and Time Delay

• Suggested travel distance: About 3 feet (1 meter) switch stop to switch stop, ensuring the 6'6" (2m) rail length is fully utilized.
• Time delay setting: 20-30 seconds, with a maximum of 60 seconds for larger LED grow lights.

These settings help maximize light exposure while preventing plant stress from excessive movement.

Why Choose the Add-A-Lamp Kit?

Designed for Long-Term Durability and Performance

The Add-A-Lamp Kit is built with instrument-grade precision by Gualala Robotics, ensuring:

• Smooth and reliable movement along the rail.
• Heavy-duty wheels for maximum support.
• USA-made quality, exclusively available from LightRail.

This system provides unmatched efficiency for indoor growing, hydroponics, and greenhouse applications, boosting plant health and yield potential.

Final Words

The Light Rail Add-A-Lamp Kit is the easiest and most effective way to expand a LightRail grow light mover system. Whether you need to move a second or third grow light, this kit provides the flexibility, reliability, and ease of installation required for automated indoor growing success.

With pre-installed Extreme Duty Trolley Wheels, adjustable configurations, and seamless compatibility with LightRail 3.0, 3.5, 4.0, and 4.20, this system ensures better light distribution, reduced shading, and increased yields.

The Add-A-Lamp Kit is a game-changer for growers looking to maximize efficiency and optimize their lighting setup.
