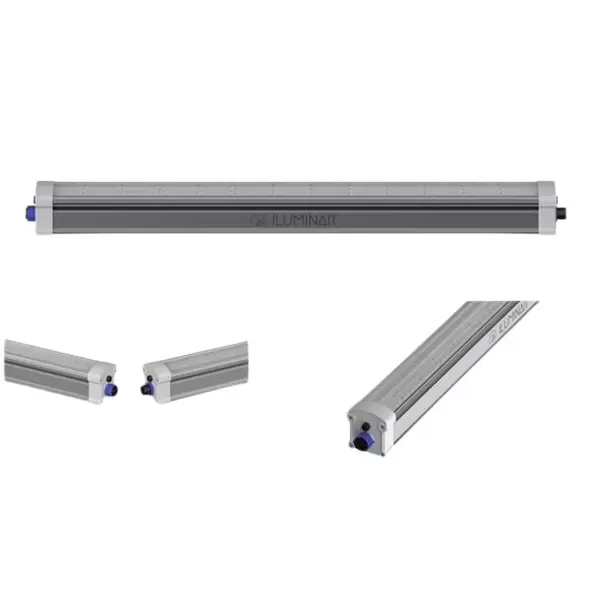

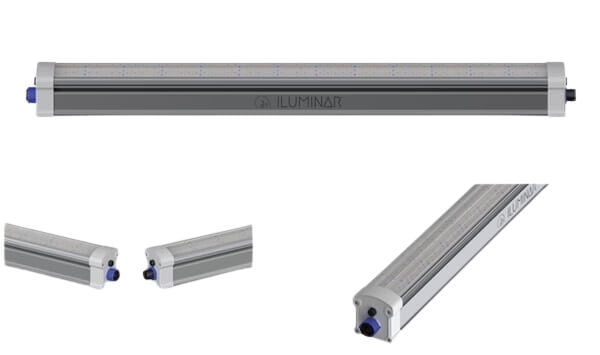

Under Canopy 160w 6ft Extension W/ 0-10v Port

Unlocking the Full Potential Beneath the Canopy

Stop leaving your crop’s potential in the shade! The Iluminar Under Canopy Light offers a game-changing solution for growers aiming to transform untapped under-canopy growth into tangible results. Designed with precision, this under canopy lighting system targets the lower leaves and buds of plants, promoting optimal health, increased harvestable biomass, and superior crop quality.

Energy Efficiency: Optimized Lighting for Maximum Impact

The Under Canopy Light is meticulously engineered for energy efficiency. By reducing your carbon footprint and maximizing plant health, it delivers unparalleled lighting performance where it is needed most. Key features include:

• Precise Light Delivery: Targeted light application ensures no wasted energy and maximum plant absorption. • Dimming Capability: With 0-10V dimming functionality, growers can fine-tune light intensity to suit the specific needs of their crop.

Durability Meets Sleek Design

Built to last, the Under Canopy Light’s robust frame withstands the challenges of daily agricultural use while seamlessly integrating into your existing setup.

• Robust Construction: Housed in a durable yet sleek frame that is easy to position. • Waterproof and Humidity Resistant: Rated IP65, it resists humidity and water ingress from misters and irrigation systems. • Optimal Placement: Each fixture is equipped with a support stand to elevate the light for the best coverage.

Spectrum Balancing for Enhanced Growth

FS Spectrum (UCL-160W-FS)

A perfect companion to HPS and DE-HPS top lighting systems, the FS spectrum introduces additional yellow and green wavelengths. This results in:

• Enhanced Photosynthesis: Boosts plant energy production. • Improved Plant Health: Strengthens overall crop robustness. • Enriched Terpene Profiles: Elevates the aromatic and medicinal quality of your plants. • Better Lower Flower Development: Encourages growth in areas that are often neglected.

R Spectrum (UCL-160W-R)

Engineered to synergize with full-spectrum LED top lights, the R spectrum delivers high levels of red wavelengths for maximum under canopy photosynthetic efficiency. Benefits include:

• Accelerated Development: Enhances growth in lower canopy areas. • Turbocharged Photosynthesis: Increases energy absorption and usage.

Technical Specifications

Lighting Performance

• PPE: 2.8-3.0 μmol/J • PPF: 448-480 μmol/s

Electrical Requirements

• Input Voltage: 120-277V AC • Input Current: 0.58-1.33A

Dimensions

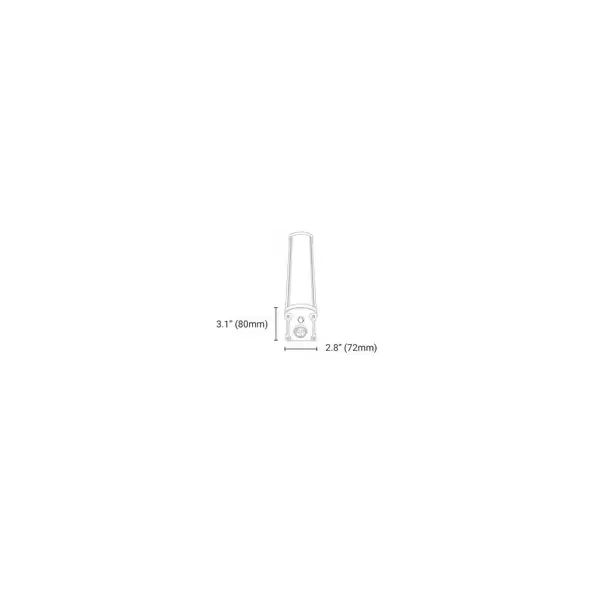

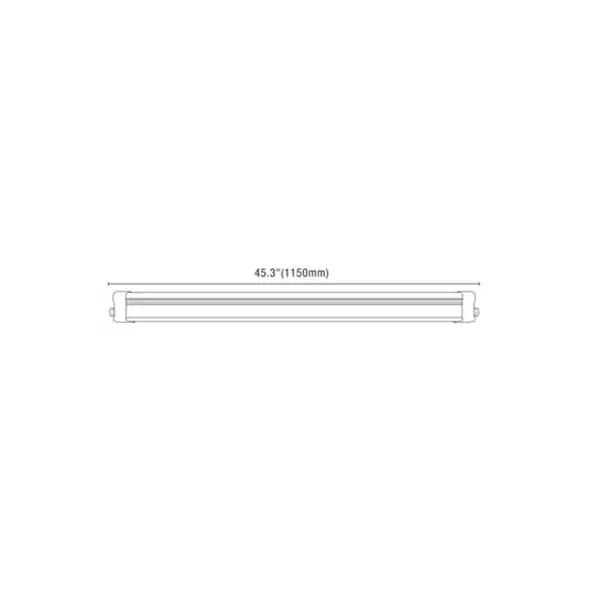

• Length: 1150 mm / 45.3” • Width: 72 mm / 2.8” • Height: 80 mm / 3.1”

Final Words

The Iluminar Under Canopy Light is a sophisticated, energy-efficient, and durable solution tailored to meet the needs of modern growers. Whether you’re aiming to enhance lower canopy development or improve overall crop quality, this lighting system is the key to unlocking a new level of agricultural success. Equip your operation with the best and experience the difference in your harvest.
