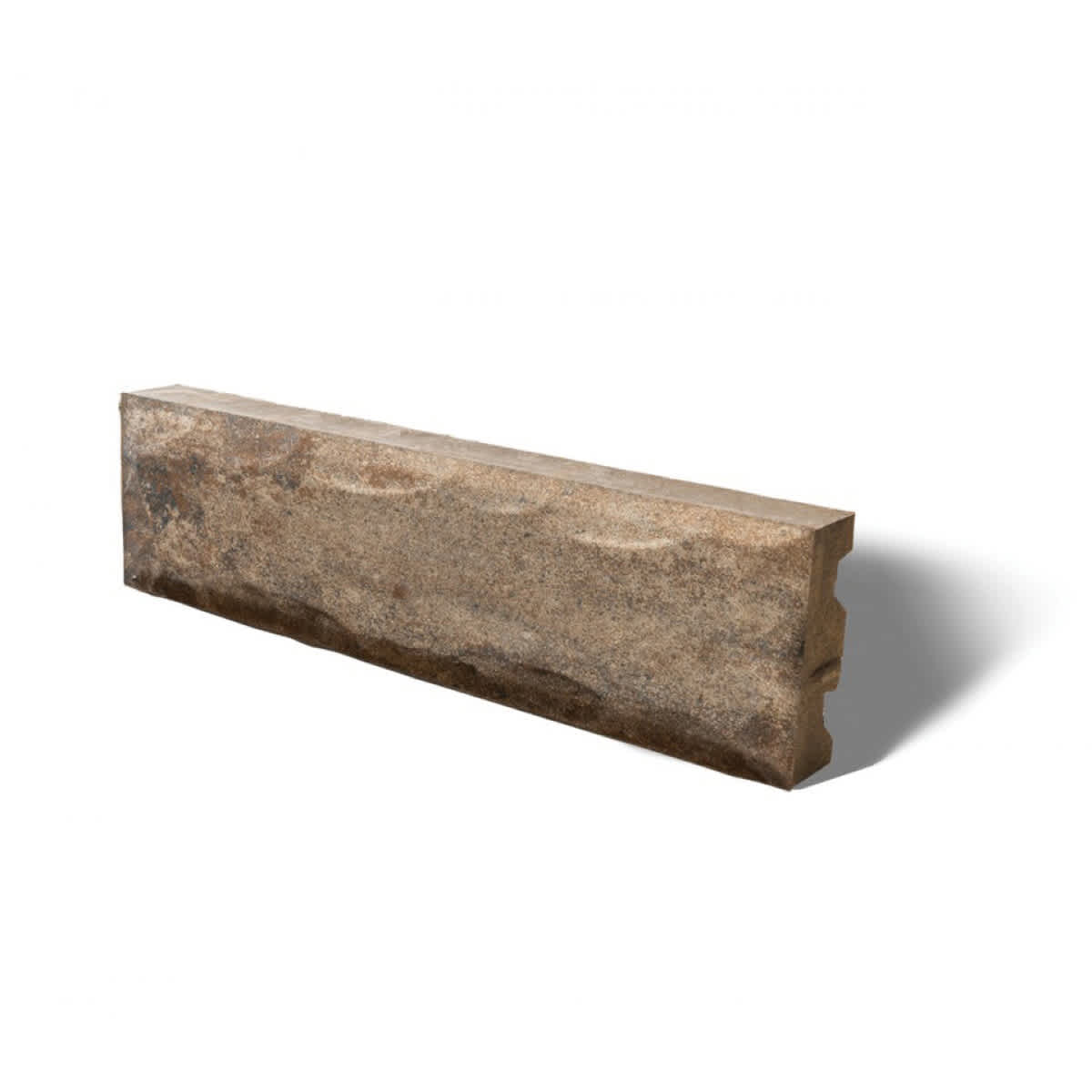

U-Cara Wall System | UNPRSUCARA00100

Key Features

• Gravity walls up to 39 in., geogrid reinforced walls up to 10 ft., download the U-Cara manual for detailed information on how to build almost anything
• One layer of DriveGrid™ stabilization grid between sub-grade and base material, use under standard base or permeable base
• Minimum 6 to 8 in. of 3/4 in. crusher run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD)
• Minimum 6 to 8 in. of 3/4 in. clear open-graded stone compacted to achieve full particle lock up and consolidation
• U-Cara MUST be constructed on U-Grip™ Base units or universal base pads, it will ensure improved accuracy and will make for a speedier installation, additional benefits include long term structural integrity and an overall better appearance, poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, especially for larger installations, you must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance
• Features a tongue and groove connection, use appropriate concrete adhesive for connection between standard backer units or where the key has been removed for corners. Always read adhesive manufacturers' directions prior to gluing
• Handle faces with care to avoid chipping edges
• This wall requires coping. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options, install with tight joints or 3/16 in. gap between units and amend with an exterior latex caulking, cutting may be required, a diamond blade saw is required to cut coping properly, glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time, always read adhesive manufacturers' directions prior to gluing
