Description
Specifications
| Brand | Flowmec |
| AMP Rating | 200 uA Quiescent |
| Frequency Rating | 0 to 100 Hz |
| Measuring Range | 0.55 to 82 gpm |
| Type | Insertion Ultrasonic |
| For Use With | Irrigation Controllers |

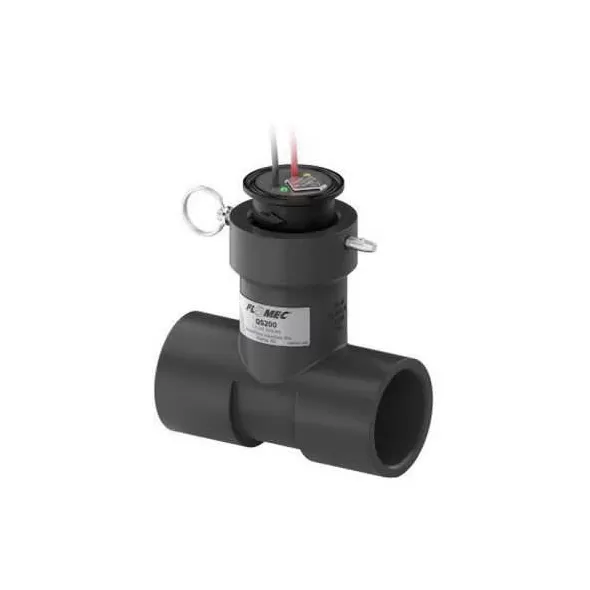

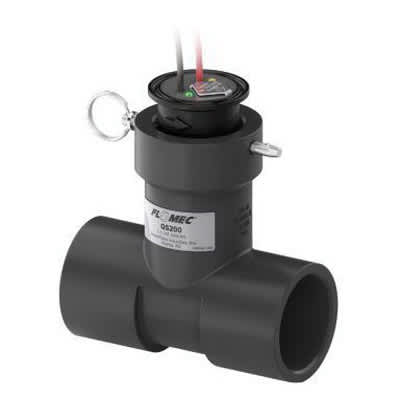

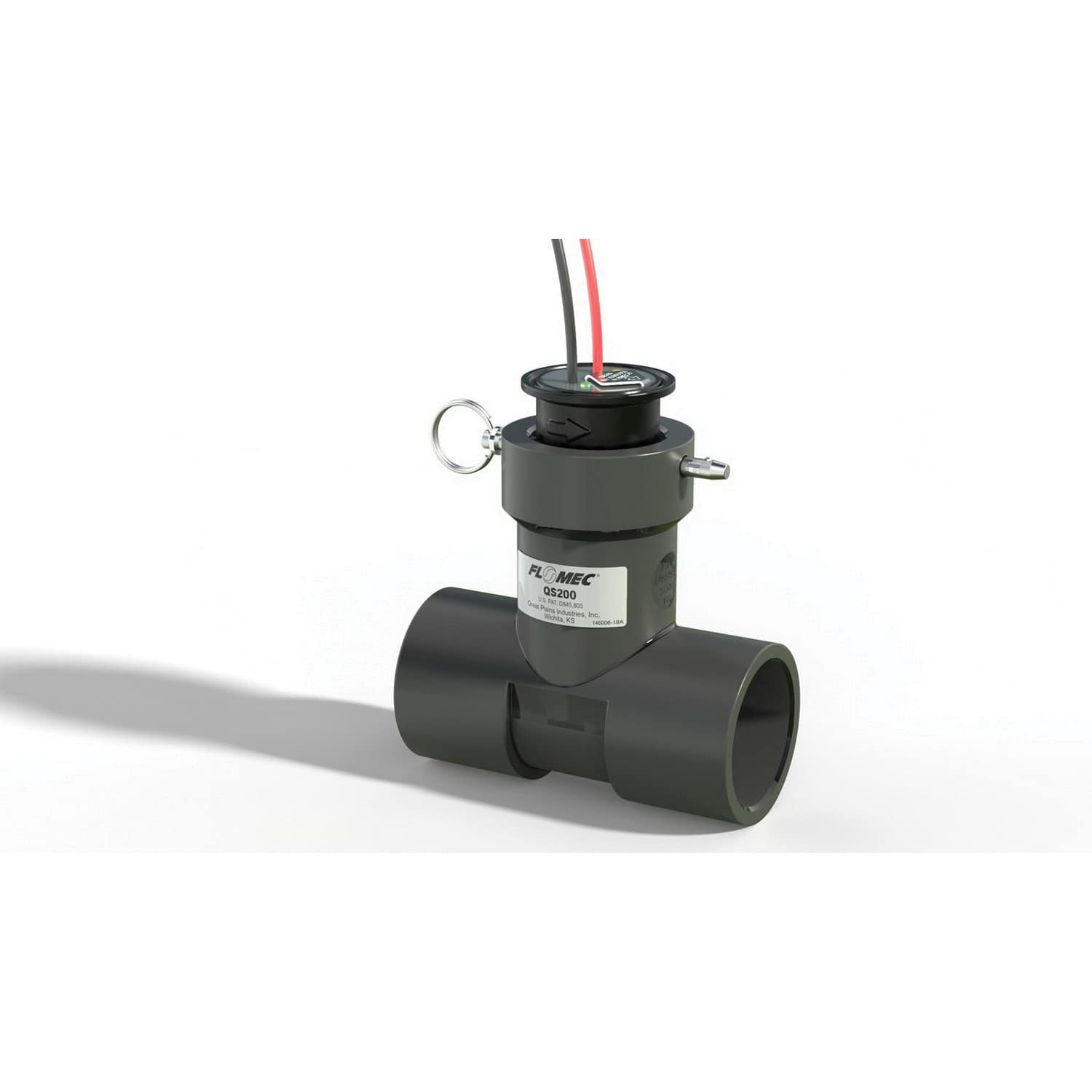

The QS200 Insertion ultrasonic flowmeter provides an accurate reading of liquid flow rate and accumulated flow. Designed to support commercial irrigation applications.The QS200 ultrasonic insert is available with a PVC tee or as an insert retrofit for replacement of existing paddlewheel flow sensors. Designed for above and below grade applications, such as irrigation, municipal and underground monitoring where the flow rates are between 0.1 to 15 fps (0.03 to 4.57 m/s) and temperatures are below 140° F (60° C). QS200 inserts are supplied with two single conductors, 18 AWG solid copper wire leads that are 36 in. (914.4 mm) in length with UL Style 116666 direct burial insulation.
