0.92 to 138 gpm 150 psi at 73 DegreesF 2" Slip QS200 Series Insertion Ultrasonic Flow Meter | FLMQS20020

Specifications

Brand	Flowmec
AMP Rating	200 uA Quiescent
Frequency Rating	0 to 100 Hz
Measuring Range	0.92 to 138 gpm
Type	Insertion Ultrasonic

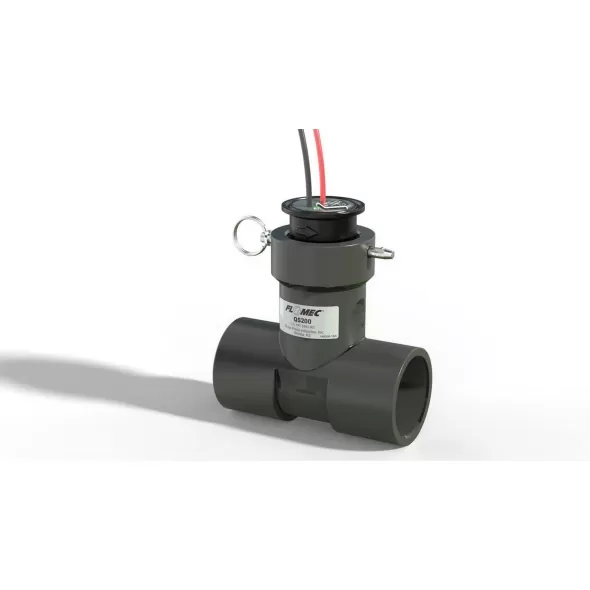

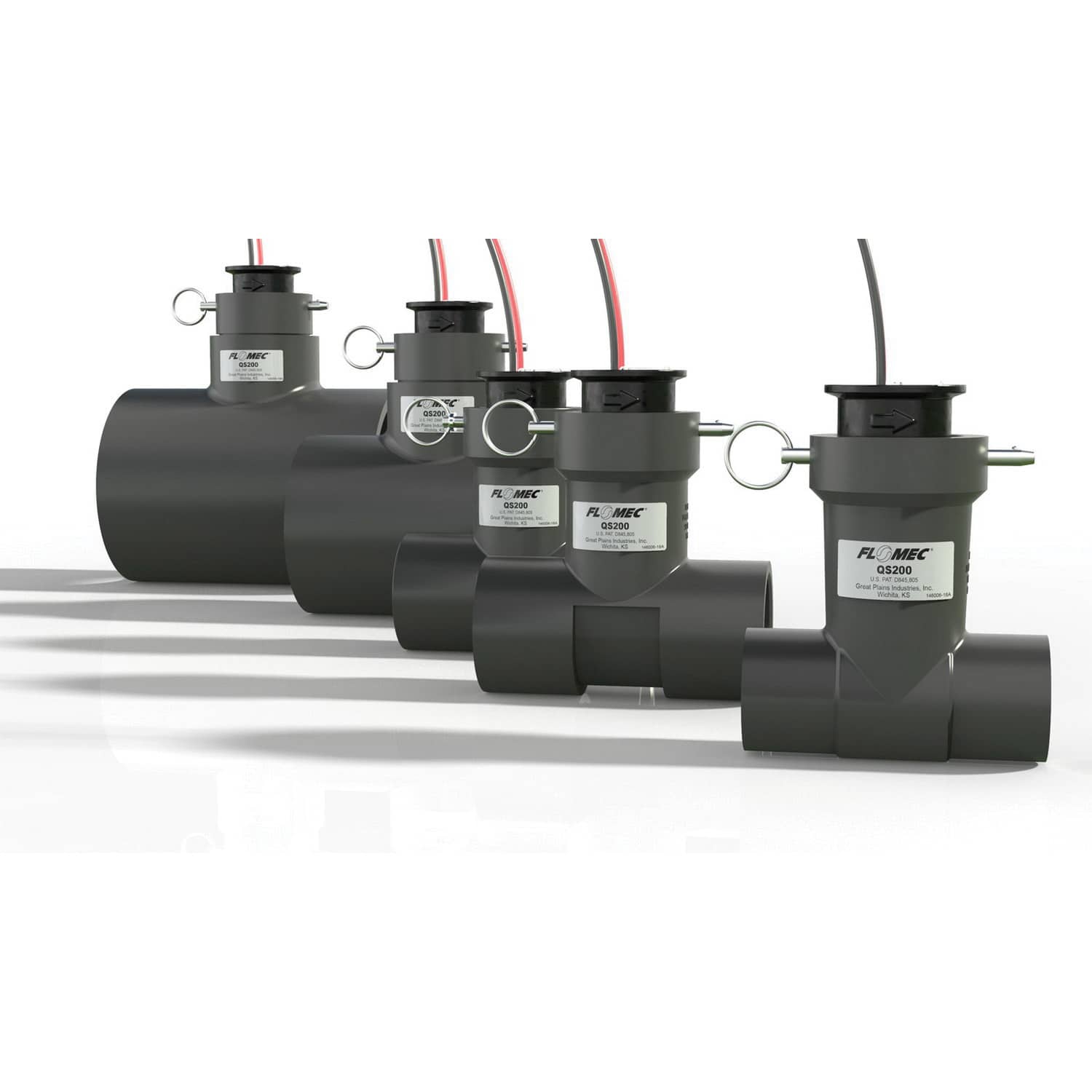

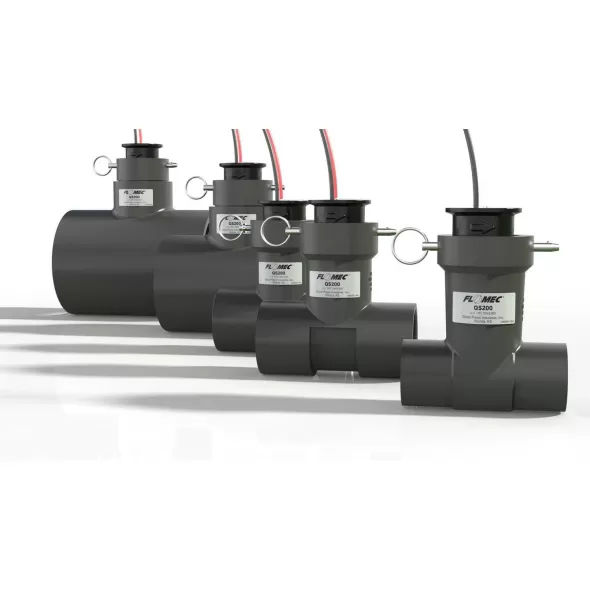

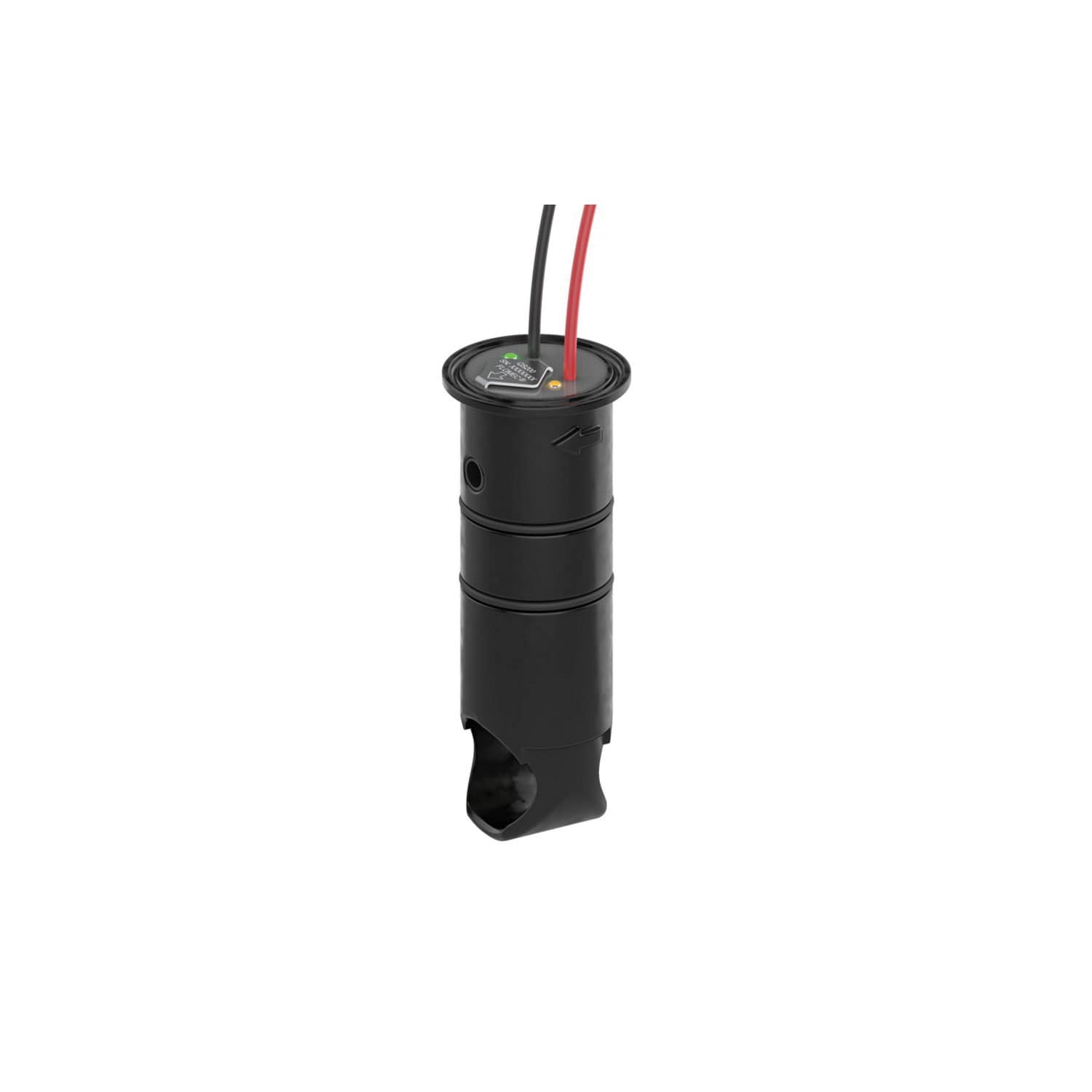

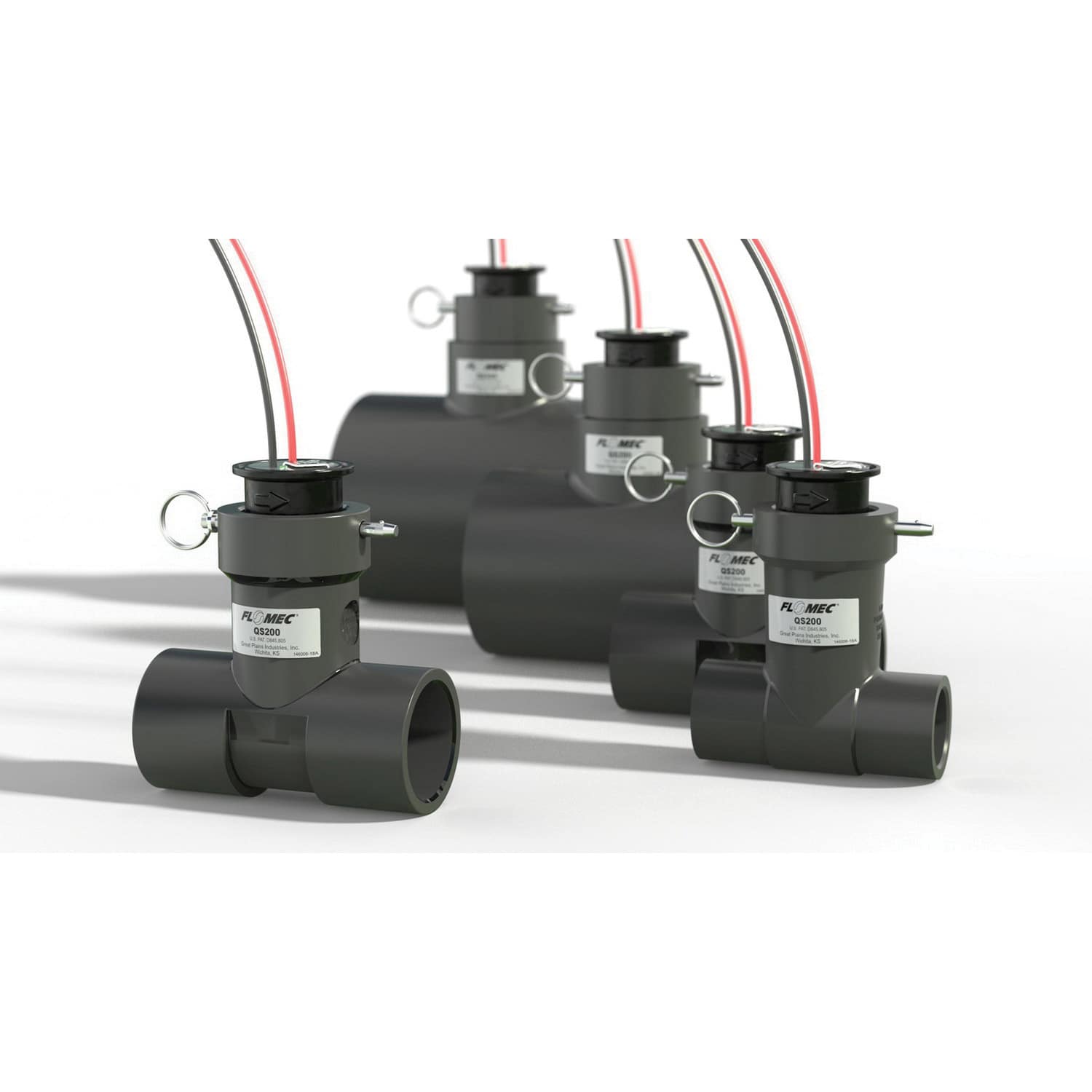

The QS200 Insertion ultrasonic flowmeter provides an accurate reading of liquid flow rate and accumulated flow. Designed to support commercial irrigation applications.The QS200 ultrasonic insert is available with a PVC tee or as an insert retrofit for replacement of existing paddlewheel flow sensors. Designed for above and below grade applications, such as irrigation, municipal and underground monitoring where the flow rates are between 0.1 to 15 fps (0.03 to 4.57 m/s) and temperatures are below 140° F (60° C). QS200 inserts are supplied with two single conductors, 18 AWG solid copper wire leads that are 36 in. (914.4 mm) in length with UL Style 116666 direct burial insulation.
