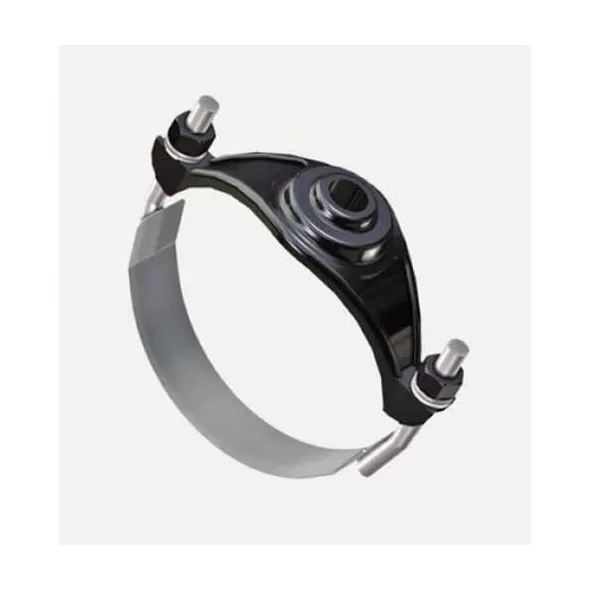

1" IPS Ductile Iron Service Saddle | ROM101S4548X010

Key Features

• The saddle body is cast from ductile (nodular) iron, meeting or exceeding ASTM A 536, Grade 65-45-12
• Gasket is made from Nitrile Butadiene Rubber (NBR) compounded for water and sewer service and a tolerance of petroleum products in accordance with ASTM D 2000 MBC 610 and NSF 61 certified, other compounds available for special applications
• Type 304 (18-8) heavy gauge stainless steel per ASTM A 240, straps are 2 in. wide to spread out clamping forces on the pipe, GMAW and GTAW welds, passivated for corrosion-resistance
• For sizes 1-1/2 to 3 in., 1/2 in. UNC roll thread-type 304 (18 to 8) stainless steel bolts with heavy hex nuts, 4 in. and above use 5/8 in. UNC roll thread-type 304 (18 to 8) stainless steel bolts with heavy hex nuts, rod for bolts are per ASTM A 240 and nuts are per ASTM A 194, all welds fully passivated for enhanced corrosion-resistance, nuts-coated to prevent galling
• Flat, type 304 (18 to 8) heavy gauge stainless steel
• Shop-coat applied to cast parts for corrosion protection in transit
