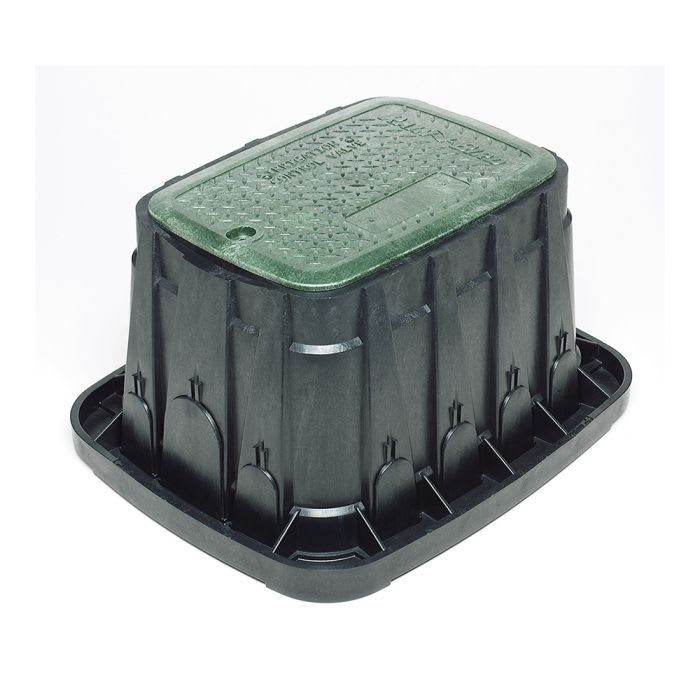

21.8" x 16.6" x 12" Rectangular Plastic Green VB Standard with (1) Lock Green Lid Valve Box | RBBVBSTDH

In stock
0.00
(0 reviews) Write a review
A11408
Brand: Rain Bird
$4948

Minimum quantity for "21.8" x 16.6" x 12" Rectangular Plastic Green VB Standard with (1) Lock Green Lid Valve Box | RBBVBSTDH" is 1.

Chat Now

Key Features

  • Rain Bird's VB Series valve boxes combine strength and stability with unique features that save contractors time and money
  • Wide flange bases and corrugated sides protect valves by offering maximum durability, compression strength and stability under heavy loads
  • Smart lid design with no holes to minimize pest access
  • Locking lid
  • Body is made from 100% recycled materials, making them earth friendly and LEED compliant
  • Pipe hole knockouts designed to fit with most pipe configurations are built into the sides of the valve box for easy pipe placement with little need for time consuming, tedious cutting
  • The knockouts can be slid back into place to keep backfill dirt from entering the valve box
  • For larger and deeper applications, valve box extension models and bottom-to-bottom stacking and interlocking capabilities provide installation flexibility
  • Easily removable knockouts simplify pipe placement and reduce installation time, 13 large knockouts accommodate up to 3.5 in. Dia pipe
  • Knockout retainers hold removed knockouts in place above the pipe to help keep dirt out during backfill
  • Corrugated sides provide strength both before and after knockouts are removed
  • Shovel access slot on body allows for easy lid removal
  • Beveled lid edges help prevent damage to lids from lawn equipment
  • Bolt hole knock out in the lid keeps insects out of the box when bolt is not used
  • Interlocking bottoms allow boxes to mate securely together bottom-to-bottom for deep installations
  • Lid marking area provides dedicated location for valve identification
  • When it comes to irrigation system installation and design, valve boxes play an important role, yet often aren't given much thought, a well designed valve box can make installations faster and easier while reducing the need for future maintenance

Available from these sellers (1)
Sold by:
GL Irrigation & Landscape Supply
0.00
(0 reviews)
Denver, US
In stock
$4948
Add to cart
Add to Wishlist
start selling start selling
Description Reviews You may also be interested in

Description

Specifications

BrandRain Bird
Actual Dimensions21.8 in. L x 16.6 in. W x 12 in. H
Includes(1) Lock Green Lid
MaterialPlastic
Valve Box MarkingIrrigation Control Valve
UPC753810015855
ColorGreen

Valve boxes shall be used as durable, rigid enclosures for valves or other irrigation system components requiring subsurface protection for installation or maintenance. The valve box shall be made of structural foam HDPE resin that is resistant to UV light, weather, moisture and chemical action of soils. Valve box body and black lid shall be composed of 100% recycled HDPE. The standard rectangular body shall have knockouts molded into the sides that can be readily removed. The knockouts shall remain an integral part of the body unless removed to run pipes or wires through the valve box. The valve box shall have corrugated sides. Rectangular valve boxes shall have a grooved feature on one side, just below the lid at the top of the box, for inserting a shovel blade or other prying tool to provide easy lid removal. This is useful following compaction of the surrounding soil or after the eventual accumulation of thatch over the valve box. Extension models shall have vertical ribs inside that make them capable of being mounted directly over the top of another box. Boxes shall have a stepped feature on the bottom that securely interlocks two boxes together when mated bottom-to-bottom for use in a deep installation. There shall be no hole in the valve box lid unless the bolt hole knockout is removed in order to use the locking bolt. Lids shall have beveled edges to minimize potential damage from lawn equipment. Lids shall be clearly marked with the words irrigation control valve molded onto the top. Lids shall have a marking area measuring at least 6.0 in. x 2.0 in. that is suitable for branding or other means of identification. The locking bolt, washer and clip shall be made of stainless steel. The valve box shall be manufactured by Rain Bird Corporation, Glendora, California.
