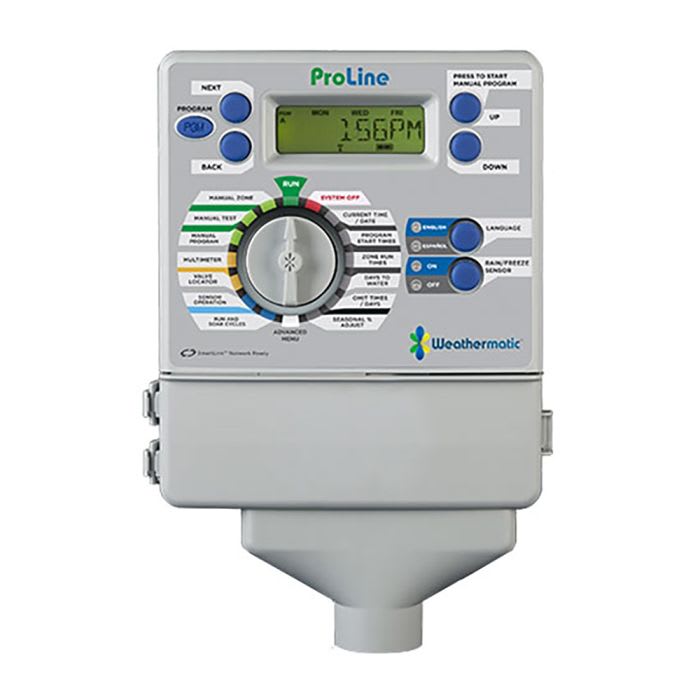

24 VAC 750 mA 4 Station Controller | WMTPL800

Key Features

• Four independent programs - each stacks or can operate simultaneously
• Eight start times per program
• Indoor/outdoor-rated
• Five user selectable languages
• Zone run times settable from 1 min to 9 hr 55 min
• Rain/freeze sensing on-off button with tri-color LED indicator
• Rain delay of 1 to 7 days
• RFS5 rain/freeze sensor rain delay programmable from 0 to 99 hr
• Seasonal % adjust by program, by month
• Omit time of day window, day(s) of week and up to seven calendar dates
• Programmable zone to zone delay 1 min to 3 hr
• Watering days custom days of the week, odd/even or interval days
• Run/soak cycles by program
• Large backlit LCD display
• Non-volatile memory - with no battery required
• Simultaneous solenoid operation - three solenoids
• Manual test runs each zone with zone run times from 10 s to 10 min
• Manual zone operation of a single zone (1 min. to 9 hr. 55 min)
• Push button manual start of a program from control panel
• Fault review displays all faults, including open and shorted zones
