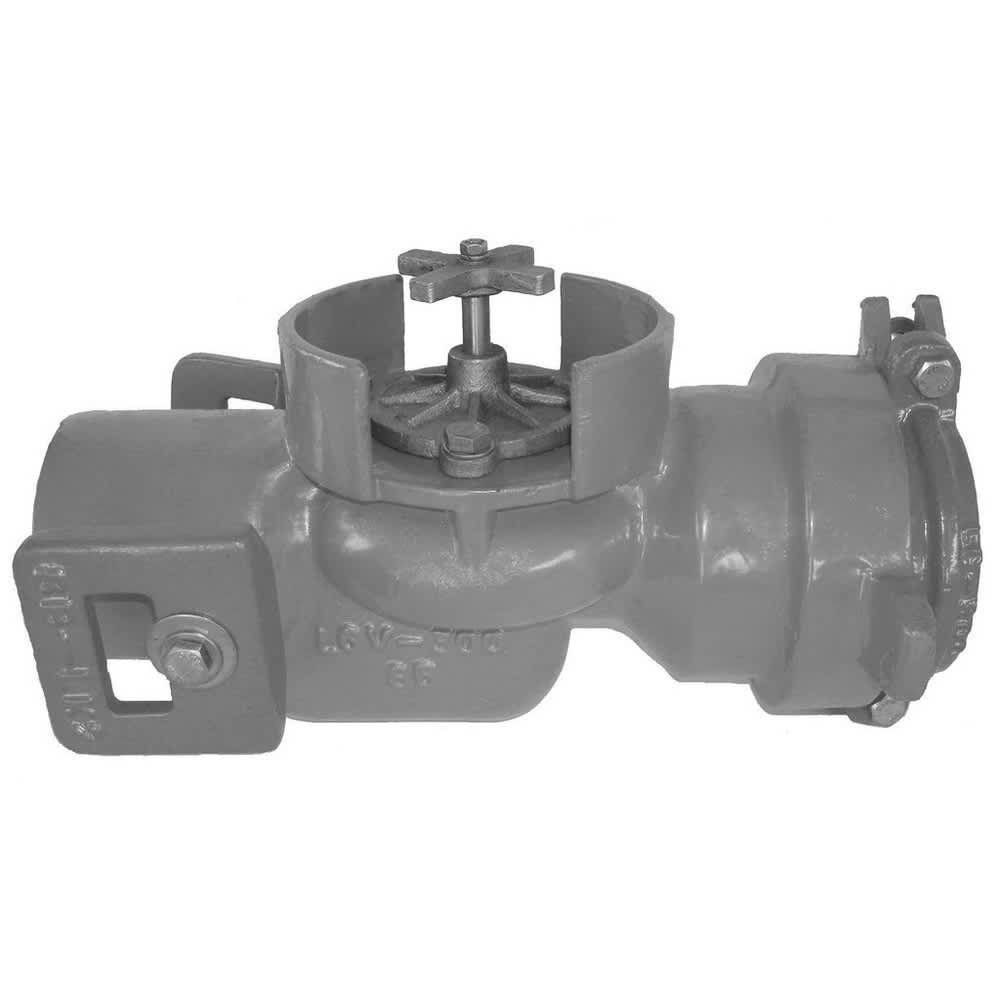

3" x 4" IPS Spigot x Bell End Epoxy Coated Ductile Iron 350 psi LGV-SB Series Lateral Globe Valve | LEMLGV3490

Key Features

• Quality stainless steel valve mechanism
• Superior EPDM rubber disc and U-cup outlet gasket
• Deep bell self-restrained outlet
• Blunt cast serrations - won't damage pipe surface
• Fusion bonded epoxy-coating on interior and exterior surfaces
• The spigot x bell version is designed for the spigot end to insert into a Leemco gasket tee as shown in picture, the valve links restrain to the ears on the gasket tee for a secure connection
• Entire valve mechanism is made of 100% stainless steel and is completely top serviceable
• The deep bell, self-restrained, gasket outlet has blunt cast serrations which are specifically designed not to damage the plastic pipe surface
• Slotted skirt top the valve is designed for IPS sleeve to protect cross top from dirt and debris
• Valve body and outlet clamp are made of durable ductile iron and have a fused epoxy finish inside and out to help protect against corrosive soils and acidic water created by chemical injector and sulfur burner systems
