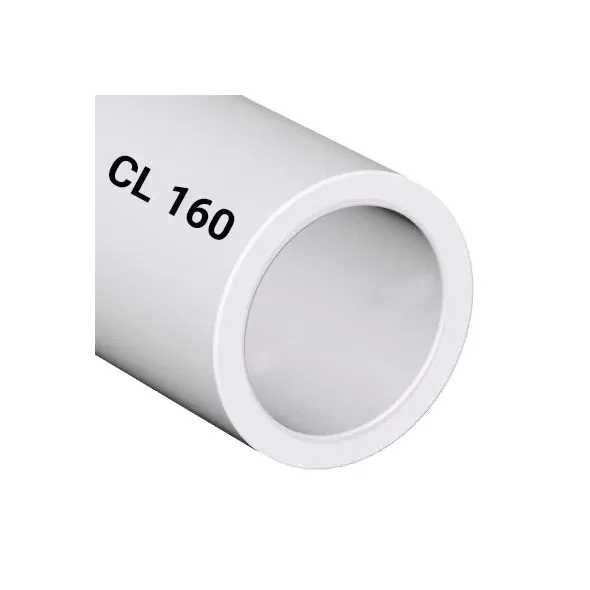

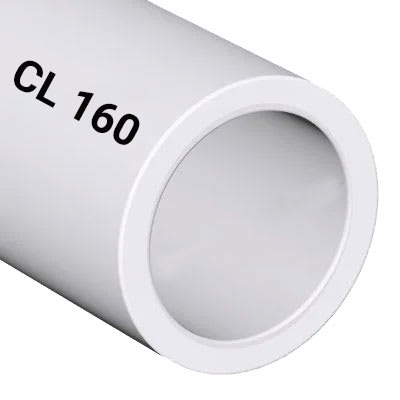

4-1/2" x 20' Class 160 Bell End White PVC Pressure Pipe

Specifications

Pressure Rating	160 psi
Max Working Pressure	160 psi
Pipe Diameter	4-1/2 in.
Pipe Length	20 ft.
Potable Water	Potable Water
End Connection	Bell End
Class	CL 160 (160 psi)
Material	PVC
Color	White

NACO fabricated fittings for IPS Class 160 and 200 piping systems are manufactured and offered in iron pipe size (IPS) diameters 6 to 12 in. NACO's IPS CL160 and CL200 fabricated fittings are produced from Class 160 and 200 pipe which meets or exceeds all of the specifications of ASTM D2241. These fittings are produced from pipe made from material that conforms to ASTM D1784. Our fabricated IPS pressure fittings are offered in both gasketed push-on joints and socketed solvent weld joints in standard dimension ratiOS® (SDR) 26 and 21 with pressure ratings of 160 and 200 psi respectively.
