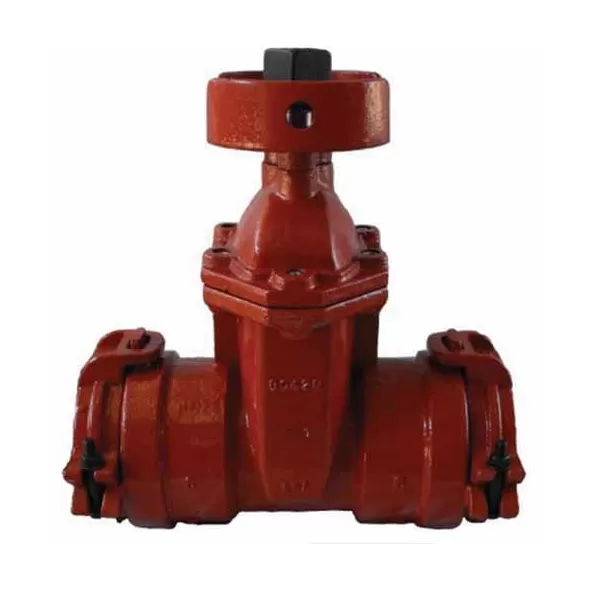

6" Bell End Epoxy Coated Ductile Iron 350 psi LMV Series Mainline Gate Valve | LEMLMV66BB

Key Features

• The deep bell, self-restrained, gasket outlet has blunt cast serrations which are specifically designed not to damage the plastic pipe surface, the Leemco gasket is made of high-grade EPDM rubber and unique "U-CUP" design, gasket ribbed segments assure compression against side walls to seal under low and high pressures
• Valve body and outlet clamp are made of durable ductile iron and have a fused epoxy finish inside and out, to withstand corrosive soils and acidic water created by chemical injector and sulfur burner systems
• Non-rising bronze stem is sealed with a lifetime lubricated high-grade EPDM rubber O-ring, resilient wedge is made of ductile iron with EPDM rubber seal for drip tight shutoff
• Slotted skirt atop the valve is designed for IPS sleeve to protect 2 in. operating nut from dirt and debris, two opposing holes in the shroud can be used to lift and place valve assembly into trench
• Feet on bottom of valve are designed to keep valve upright on flat surfaces for ease of warehouse or container storage
• Top round shroud designed for pipe sleeve
