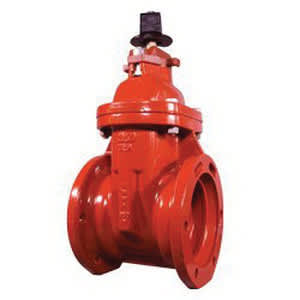

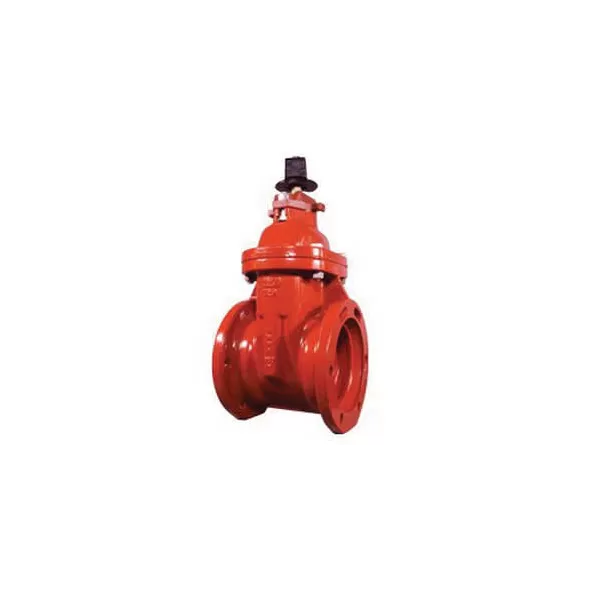

6" Mechanical Joint Fusion-Bonded Epoxy Coated Ductile Iron 250 psi F-6100 Series Resilient Wedge Gate Valve | CLOGV6MJ

Key Features

• Acetal thrust bearings above and below the thrust collar reduce friction and minimize operating torque
• Long, trouble-free life with high strength, non-corrosive copper alloy stem and stem nut
• 304 stainless steel nuts and bolts provide long life corrosion protection
• A fully encapsulated wedge ensures a bubble tight seal every time, up to rated pressure (250 psi), with its twin seal design
• A smooth, unobstructed waterway, which is free of pockets, cavities and depressions, allows for minimal flow loss and lower pumping costs, all valves accept a full size tapping cutter
• Pads on the bottom of all valves keep the valve in an upright position for easier storage and protection from the elements
• A corrosion-resistant fusion bonded epoxy-coating, conforming to AWWA C550 and certified by NSF 61, protects both the interior and the exterior of the valve
• O-ring seals at the stuffing box and at the bonnet to body flange ensure the best possible seal
• Upper O-rings are replaceable with the valve fully open and subjected to full-rated working pressure
• Integrated lifting lugs on follower plate for setting the valve into position
