Description
Specifications
| Brand | Febco |
| Body Material | Lead-Free Cast Copper Silicon Alloy |
| Connection Size | 1 in. |
| Connection Type | Threaded |
| Inlet to Outlet Length | 3-9/16 in. |
| Master Valve Status (Normally Open/Normally Closed) | 1/4 Turn Open/Close |
| Opening | Full Port |
| Operator Type | Tee Handle |
| Seat Material | PTFE |
| Stem Material | Brass |
| Top to Inlet Center | 2 in. |
| Valve Type | Ball Valve |
| UPC | 098268026313 |

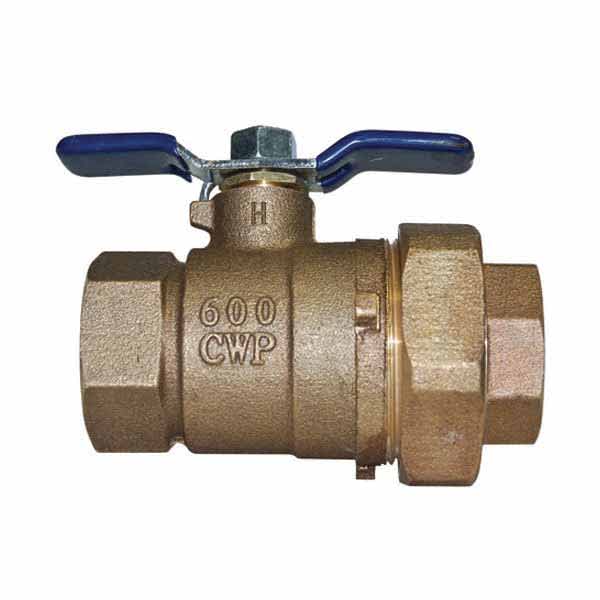

Series LF622UF lead free full port union end ball valves are designed for steam service applications. They are ideal for throttling and balancing of nonabrasive fluids where minimum flow is 20% to 100% of valve capacity. The full port design ensures minimal pressure drop. These valves feature a PTFE stem packing seal, thrust washer and seat. They are available with tapped outlets suitable for the installation of a pressure gauge or test cock. Maximum Working Pressure: 600psi (41.3 bar) WOG; 125psi (8.6 bar) WSP.
