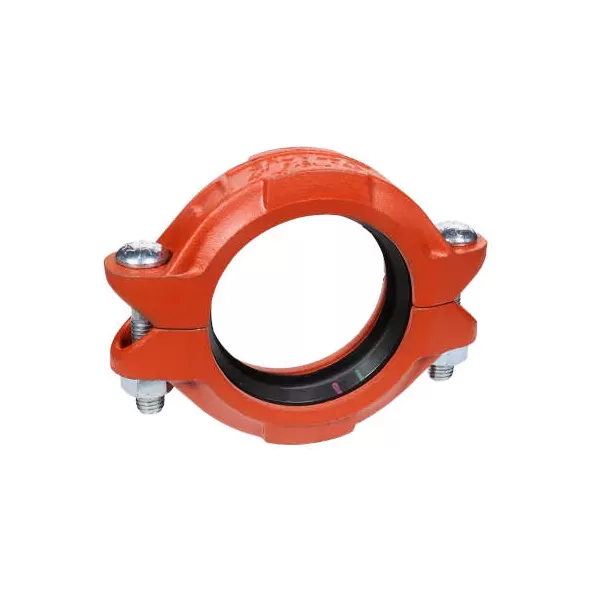

Gasket Flexible Coupling, 3" Pipe Joint Gasketed | 390003044

Specifications

Brand	ASC Engineered Solutions
Connection Size	3 in.
Connection Type	Clamp-On
Fitting Type	Coupling
Material	Ductile Iron

The Gruvlok 7001 coupling forms a flexible grooved end pipe joint connection with the versatility for a wide range of applications. Services include mechanical and plumbing, process piping, mining and oil field piping, and many others. The coupling design supplies optimum strength for working pressures to 1000 psl (69 bar) without excessive casting weight. the flexible design eases pipe and equipment installation while providing the designed-in benefit of reducing pipeline noise and vibration transmission without the addition of special components. To ease coupling handling and assembly and to assure consistent quality, sizes 1" through 14" couplings have two 180 degrees segment housings, 16" have three 120 degrees segment housings, and 18" through 24" sizes have four 90 degrees segment housings, while the 28" O.D. And 30" O.D. Couplings have six 60 degrees segment housings. The 28" O.D. And 30" O.D. Are weld-ring couplings.
