Quantity options
Description
Specifications
Brand | Hunter |
Case Quantity | 200 |
Drip Fitting Sub-Type | Elbow |
Drip Fitting Type | Barb Fitting |
Material | Acetal |
UPC | 611698136034 |

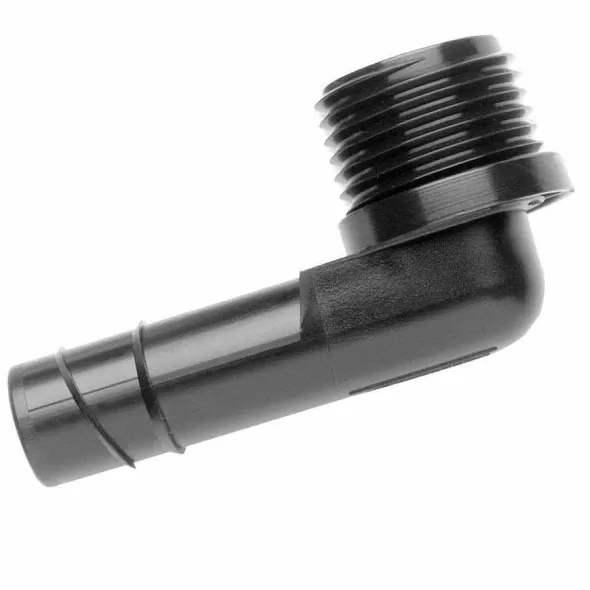

Shop for Hunter Swing Pipe Elbow 1/2 in. MPT x Swing Pipe Swing Pipe Fittings x Insert Fittings For Use with Swing Pipe (Funny Pipe) For ½" inlet spray bodies Features and Benefits Hunter Spiral Barb Elbows are particularly unique because instead of using a series of graduated barbs, Hunter's elbows have a single spiral path that aids in installation and provides better strength. The HSBEs also feature a flat "thread stop" design at the base. This stops the sprinkler from being turned too far onto the fitting while providing plenty of threads to allow ample clearance for the tubing. Hunter Spiral Barb Elbows are easy to install, provide an extremely durable connection and are designed for use with all brands of tubing. For use with FlexSG Tubing Acetel material for sharp barbs Operating pressure up to 80 PSI Compatible with FlexSG, and other brands Product Details 1/2" male thread x spiral barb elbow Acetel Material Color: Black How to Customize Connections with Hunter Sprial Barb Elbows. Step 1 Using a PVC cutter or the Hunter Emitter Multi-Tool (P/N HEMT), cut the desired length of the FlexSG Tubing. Step 2 Thread on the HSBE elbow connector to the PVC pipe location. For ½" female threads, use the HSBE-050. For ¾" female threads, use the HSBE-075. Step 3 Using the cut length of FlexSG Tubing, thread onto the HSBE elbow until hand tightened. Step 4 Thread on the second HSBE elbow to the end of the sprinkler head. Turn clockwise to tighten by hand. Step 5 Insert the threaded end of the elbow into the FlexSG Tubing. Turn clockwise using the sprinkler head until hand tightened. Step 6 Adjust sprinkler height according to the installation guidelines. Backfill with soil.
Reviews
No reviews found
