Description
Specifications
| Brand | Hunter |
| Advanced Features | Adjustable Arc, Check Valve |
| Case Quantity | 6 |
| Flow Rate | 6.7 to 19.04 cu-m/hr |
| Includes | (8) Nozzles |
| Inlet Size | 1-1/2 in. |
| Pop-Up Height | 3 in. |
| Riser Material | Plastic |
| Spray Pattern | Full/Part Circle |
| UPC | 611698126493 |

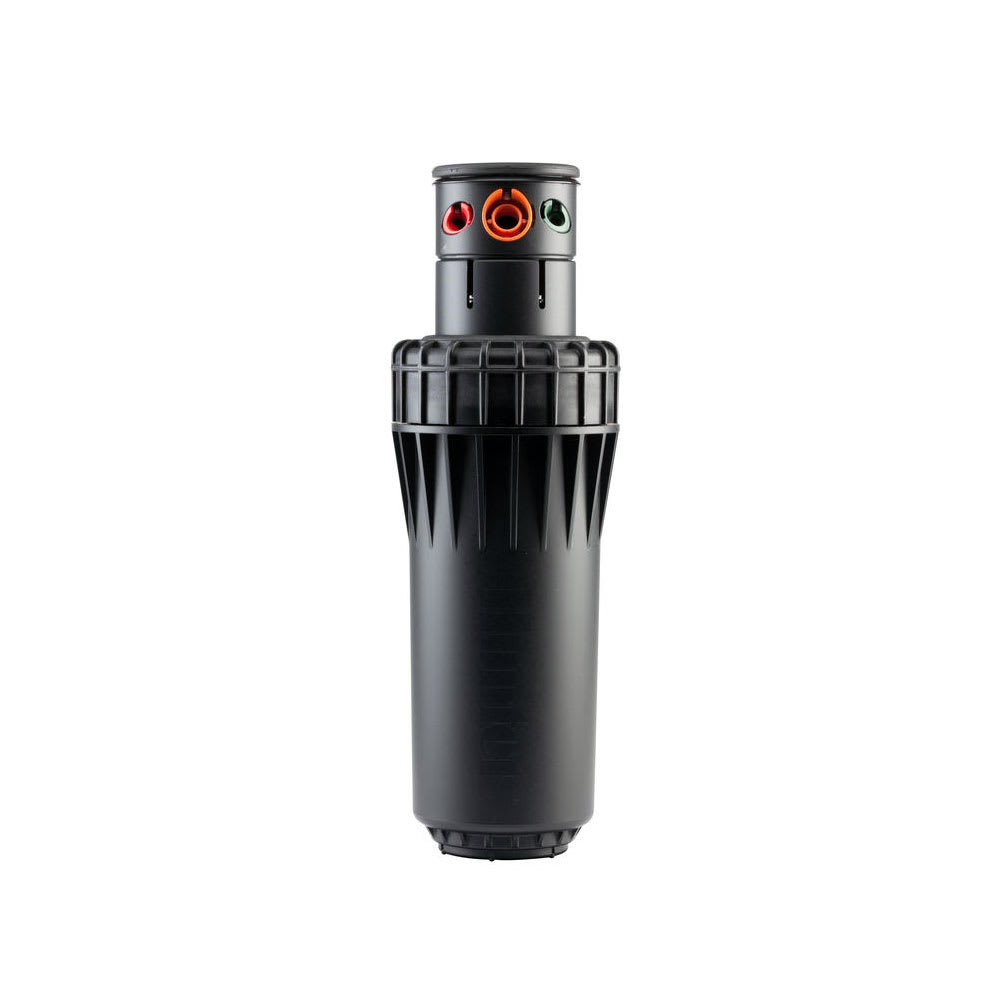

Shop for I-90 Rotor, Adjustable Arc Pop-up height: 3" Radius: 66' to 97' Inlet Size: 1½" NPT Features and Benefits The robust I-90 rotor is built for long-distance natural turf applications in large parks, open spaces, and sports fields. The I-90 is Hunter's longest-distance rotor specifically designed for natural turf, parks, sports fields, and public areas. With a radius of up to 101 feet, the I-90 boasts the longest throw capability of all-natural turf rotors. Yet, its reduced-size diameter and cushioned rubber cover make it the perfect choice for parks and wide-open lawn areas, as well as perimeter watering of athletic fields and horse arenas. The rotor is also easy to service, with a “jar-top” body cap that allows quick access to the filter screen and check valve with no extra pieces, parts, or tools required. The I-90 is offered in two models: a full-circle opposing-nozzle version or an adjustable arc model, each with color-coded nozzles that can be field-changed to match the specific needs of any large site. I-90 DUAL TRAJECTORY COLOR-CODED NOZZLES All I-90 Series rotors have color-coded nozzles for easy identification and, the nozzle numbers approximate the flow in gallons per minute. Choose from the eight standard 22.5-degree trajectory nozzles or the eight 15 degree nozzles for low-angle applications. I-90 DRAIN CHECK VALVE (UP TO 7 FT. ELEVATION) As the air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life. Product Details Flow rate:30.5 to 83.3 GPM Recommended pressure range (PSI): 80 to 90 Operating pressure range (PSI): 70 to 120 Precipitation rate: 0.75 in/hr approximately Nozzle trajectory: 22.5 degrees Check valves pre-installed Nozzle option: 8 5-year warranty
