Description
Specifications
Brand | Toro |
Material | Plastic Tee |
Sensor Type | Flow Sensor |
For Use With | Toro TMC-424, Sentinel®, Sitepro®, Irritrol MC-E, Rain Master® |
UPC | 090258048664 |

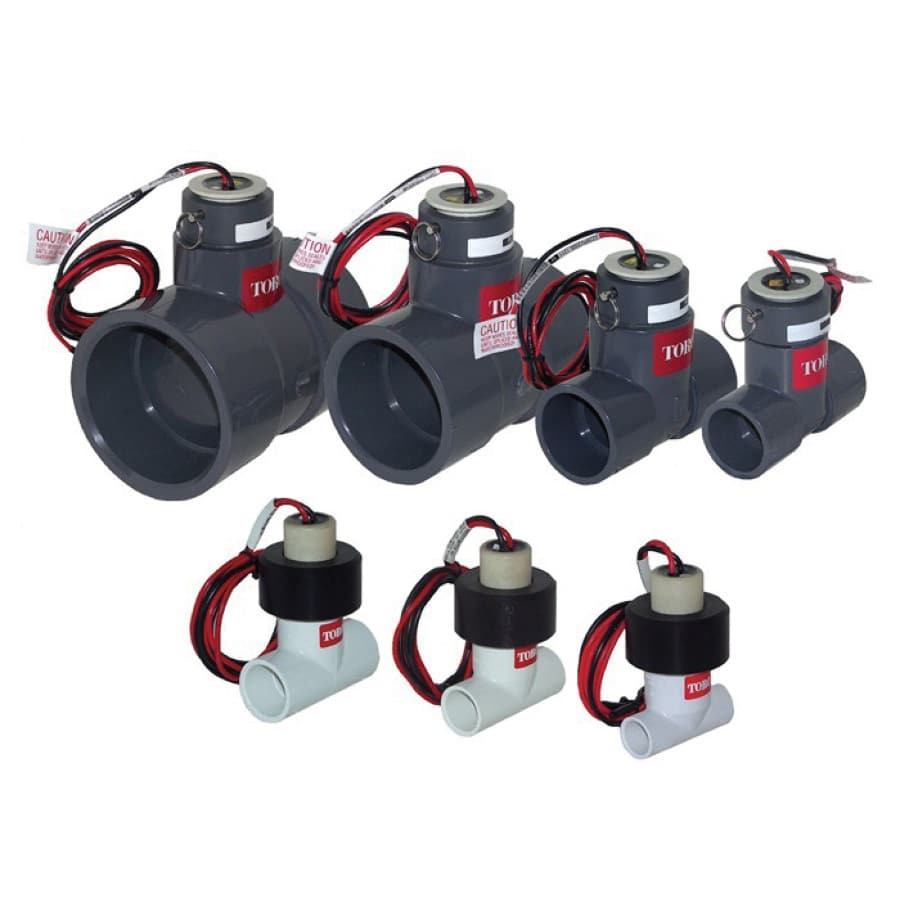

Toro Flow Sensor, Plastic Tee TFS Series The Toro TFS series flow sensors provide reliable flow information to aid in the detection of and response to system issues like piping breaks, while being accurate enough for tracking water usage. Effective Flow Monitoring Even In Flows Less Than 5 GPM Effective in ranges from 1.2 GPM to 500 GPM. Teamed with the Toro TMC-424, ½”, ¾” and 1” sensors provide a cost-effective flow monitoring and alarm system. Compatible With Competitive Controllers In addition to the TORO compatible controllers ”“ TMC- 424E, TIS-PRO, Sentinel® and SitePro® ”“ these flow sensors work with any controller or control system compatible with frequency output flow sensors. Product Details: Flow : 1.2 to 500 gpm (4.5 to 1892.7 lpm) Pressure Rating: 1/2" (1.3 cm), 3/4" & 1" (1.9 & 2.5 cm): 150 PSI (10.3 BAR); 1 1/2", 2", 3" & 4"(3.8, 5.1, 7.6 & 10.2 cm): 100 PSI (6.9 BAR) Dimensions : 1/2" (1.3 cm), 3/4" (1.9 cm), 1" (2.54 cm) , 1.5" (3.8 cm), 2" (5.1 cm), 3" (7.6 cm), & 4" (10.2 cm) Operating Temperature : Up to 140° F Features and Benefits Effective Flow Monitoring Even In Flows Less Than 5 GPM (19 LPM) Effective in ranges from 1.2 GPM to 500 GPM (4,5-1892 LPM). Teamed with the Toro TMC-424, ½”, ¾” and 1” (12mm, 20mm, 25mm) sensors provide a cost-effective flow monitoring and alarm system. Compatible With Competitive Controllers In addition to the TORO compatible controllers ”“ TMC-424E, TIS-PRO, Sentinel and SitePro ”“ these flow sensors work with any controller or control system compatible with frequency output flow sensors (pulses per second proportional to flow velocity).
