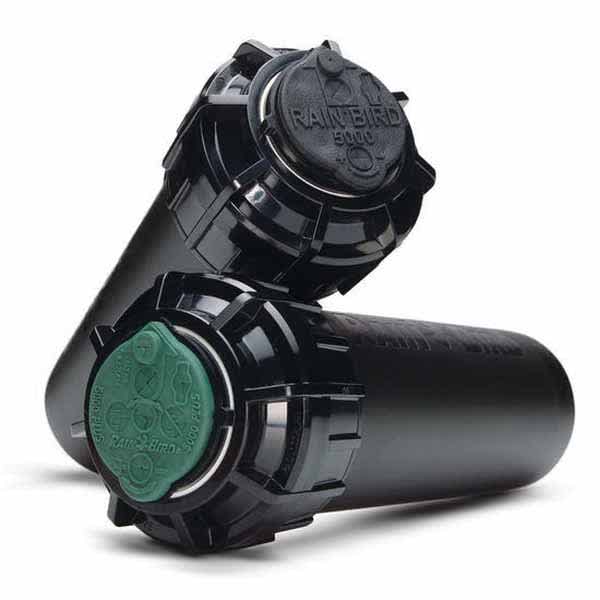

Rain Bird 5000 Plus Rotor 4" Part Circle | Y45000

Specifications

Brand	Rain Bird
Advanced Features	Adjustable Arc
Case Quantity	20
Flow Rate	0.73 to 9.63 gpm
Pop-Up Height	4 in.
Spray Pattern	Part Circle
UPC	753810011987

Shop for Rain Bird 5000 PLUS Series Pop-up height: 4" Inlet size: 3/4" Spray radius: 25' - 50' Features and Benefits Offering unmatched performance from 25' to 50', Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry's only Triple-Blade Wiper Seal with unrivaled Rain Curtain™ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand. Oversized wiper seal prevents leaks and protects internals from debris. Rain Curtain nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in resulting in greener turf using less water. A history of proven performance and reliability tested in millions of installations. Self-flushing arc adjustment port that prevents buildup of debris. Product Details Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h) Radius: 25 to 50 feet (7.6 to 15.2 m) Radius may be reduced up to 25% with radius reduction screw Pressure: 25 to 65 psi (1.7 to 4.5 bar) Flow Rate: 0.76 to 9.63 GPM (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h) Reversing full- and part-circle adjustment from 40° - 360° Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25° Five-year warranty
